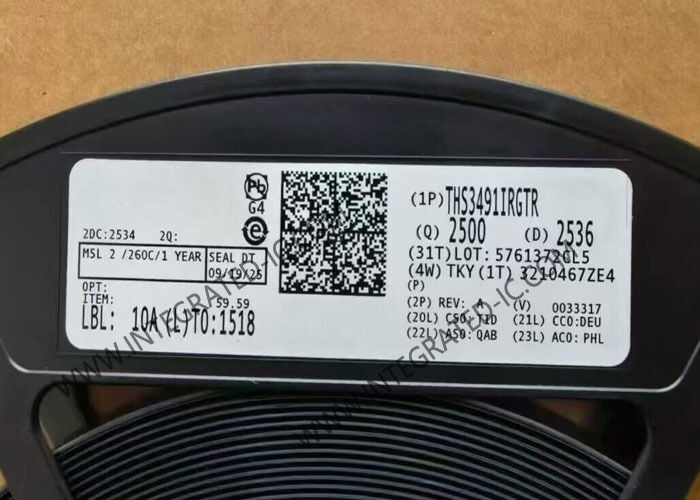

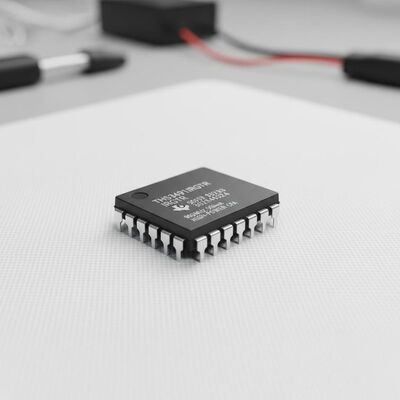

THS3491IRGTR Integrated Circuit Chip
900MHz, 500mA, High-Power Output Current Feedback Amplifier in VQFN16 Package
Product Overview
The THS3491IRGTR provides exceptional performance for applications requiring the lowest distortion at high output power levels from DC through frequencies greater than 100 MHz at 100-Ω loads. This current feedback design maintains near constant bandwidth and distortion over a wide range of gains, although specified at a gain of 5 V/V.
Technical Specifications
| Parameter | Value |
|---|
| Amplifier Type | Current Feedback |
| Number of Circuits | 1 |
| Slew Rate | 8000V/µs |
| Gain Bandwidth Product | 900 MHz |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 16.8mA |
| Current - Output / Channel | 620 mA |
| Voltage - Supply Span (Min) | 14 V |
| Voltage - Supply Span (Max) | 32 V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
Key Features
- Bandwidth: 900 MHz (VO = 2 VPP, AV = 5 V/V), 320 MHz (VO = 10 VPP, AV = 5 V/V)
- Slew rate: 8000 V/µs (VO = 20 VPP)
- Input voltage noise: 1.7 nV/√ Hz
- Bipolar supply range: ±7 V to ±16 V
- Single-supply range: 14 V to 32 V
- Output swing: 28 VPP (±16-V supplies, 100-Ω load)
- Linear output current: ±420 mA (typical)
- 16.8-mA trimmed supply current (low temperature coefficient)
- HD2 and HD3: less than -75 dBc (50 MHz, VO = 10 VPP, 100-Ω load)
- Rise and fall time: 1.3 ns (10-V step)
- Overshoot: 1.5% (10-V step, AV = 5 V/V)
- Current limit and thermal shutdown protection
- Power down feature
Applications
- High-voltage, arbitrary waveform generators
- Pattern generators for LCD testers
- Output drivers for LCR meters
- Power FET drivers
- High capacitive load piezo element drivers
- VDSL line drivers
- Pin-compatible upgrade to THS3095 (DDA)
