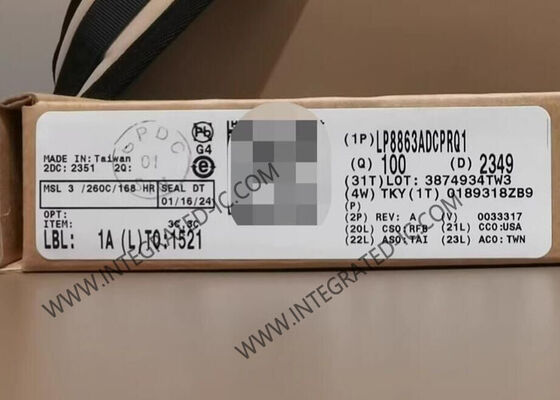

LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage

LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage
LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage

Large Image :  LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LP8863ADCPRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HTSSOP-38
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LP8863ADCPRQ1 Integrated Circuit Chip Automotive Grade LED Driver with Six 150-mA Channels and 3V to 48V Supply Voltage

Description
Part Number: LP8863ADCPRQ1 Number Of Outputs:: 6 Output
Output Current:: 150 MA Supply Voltage - Max:: 48 V
Supply Voltage - Min:: 3 V Operating Frequency:: 300 KHz To 2.2 MHz
Highlight:

Six 150-mA Channels LED Driver

,

Automotive Grade Integrated Circuit Chip

,

3V to 48V Supply Voltage LED Driver

LP8863ADCPRQ1 Automotive LED-Backlight Driver
High-efficiency automotive LED driver with boost controller featuring six high-precision current sinks for display backlight applications.
Product Overview
The LP8863ADCPRQ1 is an automotive-grade high-efficiency LED driver with boost controller. The six high-precision current sinks support phase shifting that automatically adjusts based on the number of channels in use. Current sink brightness can be controlled individually and globally through SPI or I2C interface, with additional global brightness control via PWM input.
Technical Specifications
Parameter Value
Type DC DC Controller
Topology Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 6
Voltage Supply Range 3V to 48V
Current per Channel 150mA
Frequency 300kHz to 2.2MHz
Dimming PWM
Applications Backlight
Operating Temperature -40°C to 125°C (TA)
Grade Automotive
Key Features
  • Qualified for Automotive Applications (AEC-Q100)
  • Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature
  • Input Voltage Operating Range 3V to 48V
  • Six High-Precision Current Sinks with 1% Current Matching (typical)
  • Dimming Ratio 32,000:1 Using 152-Hz LED Output PWM Frequency
  • Up to 16-bit LED Dimming Resolution with SPI, I2C, or PWM Input
  • Automatically Detects Used LED Strings and Adjusts LED-Channel Phase Shift
  • Independent Current Control for Each Channel
  • Hybrid PWM and Current Dimming Function
  • Up to 47-V VOUT Boost or SEPIC DC/DC Controller
  • Switching Frequency 300kHz to 2.2MHz
  • Boost Spread Spectrum for Reduced EMI
  • Boost Sync Input to Set Boost Switching Frequency from External Clock
  • Integrated Charge Pump Supports Low VIN Conditions
  • Output Voltage Automatically Discharged When Boost is Disabled
  • Extensive Fault Diagnostics
Primary Applications
Backlight for automotive display systems including:
  • Automotive Infotainment Systems
  • Automotive Instrument Clusters
  • Smart Mirrors
  • Heads-Up Displays (HUD)
  • Central Information Displays (CID)
  • Audio-Video Navigation (AVN) Systems
