SI52147-A01A Integrated Circuit Chip PCIe Clock Generator with 9-Output 1 ps Jitter and PCIe Gen 1/2/3/4 Compliance

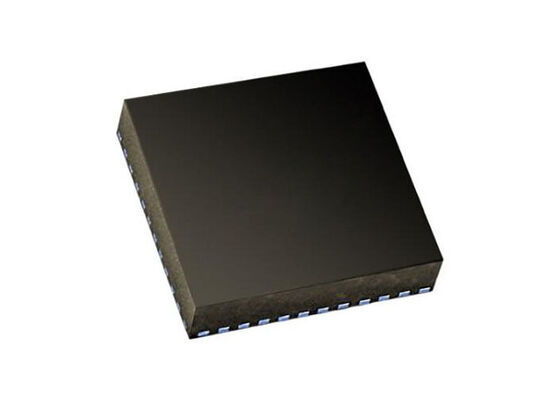

Large Image : SI52147-A01A Integrated Circuit Chip PCIe Clock Generator with 9-Output 1 ps Jitter and PCIe Gen 1/2/3/4 Compliance

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	SI52147-A01A

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-48
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

SI52147-A01A Integrated Circuit Chip PCIe Clock Generator with 9-Output 1 ps Jitter and PCIe Gen 1/2/3/4 Compliance

Description

Part Number:	SI52147-A01A	Number Of Outputs:	9 Output
Duty Cycle - Max:	53 %	Jitter:	1 Ps
Operating Supply Current:	85 MA	Operating Supply Voltage:	3.3 V
Highlight:	9-Output PCIe Clock Generator , 1 ps Jitter Clock Generator , PCIe Gen 1/2/3/4 Compliant Integrated Circuit Chip

SI52147-A01A PCI Express 9-Output Clock Generator

The SI52147-A01A is a high-performance PCIe clock generator capable of sourcing nine PCIe clocks from a 25 MHz crystal or clock input. This integrated circuit chip features clock outputs compliant with PCIe Gen 1, Gen 2, Gen 3, Gen 3 SRNS, and Gen 4 common clock specifications, delivering industry-leading jitter performance and outstanding frequency flexibility.

Technical Specifications

Main Purpose	PCI Express (PCIe)
Input	Clock, Crystal
Output	HCSL
Number of Circuits	1
Ratio - Input:Output	1:9
Differential - Input:Output	No/Yes
Frequency - Max	100MHz
Voltage - Supply	3.135V ~ 3.465V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	48-WFQFN Exposed Pad
Supplier Device Package	48-QFN (6x6)

Key Features

PCI-Express Gen 1, Gen 2, Gen 3, and Gen 4 common clock compliant
Gen 3 SRNS Compliant
Supports Serial-ATA (SATA) at 100 MHz
Low power push-pull HCSL compatible differential outputs
No termination resistors required
Output enable pins for all clocks
Spread enable pin
25 MHz crystal input or clock input
Up to nine PCI-Express clock outputs
I2C support with readback capabilities
Triangular spread spectrum profile for maximum EMI reduction
Industrial temperature range: -40 to 85°C
3.3 V power supply
48-pin QFN package

Primary Applications

Network attached storage Multi-function printer Wireless access point Servers
