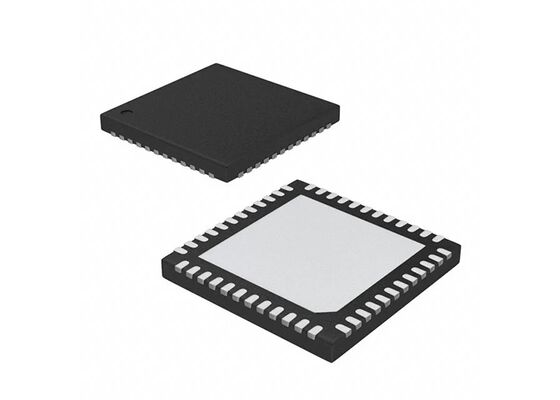

IW7039 Integrated Circuit Chip
High Precision 32-Channel LED Backlighting Driver With Integrated Current Sinks For HDR LCD Displays
Product Overview
The IW7039 LED driver for LCD backlighting integrates 32 precision current sinks with advanced digital control technology to enhance brightness control in direct backlit, High Dynamic Range (HDR) displays. The digital control block utilizes Renesas' BroadLED™ adaptive switch technology, improving thermal performance by optimizing voltage drop across each LED string while enabling precision matching with unbinned LEDs.
The IW7039 also employs Renesas' patented AnyMode™ dimming, offering comprehensive, simple, and flexible options to improve HDR display picture quality. It supports continuous PWM signals or very narrow PWM burst signals fully synchronized to the video frame at the same or higher frequency. The PWM duty cycle can be updated in each video frame with user-configurable tail or head delays, providing more options to reduce motion blur and improve contrast ratio.
Key Features
- 32-channel LED driver with internal MOSFET current sinks
- Internal current setting resistors - No external resistors required
- 65V maximum output voltage per channel
- Patented BroadLED™ adaptive switch mode technology for high current matching at maximum efficiency
- Reduces power dissipation requirements
- Enables use of cheaper, loosely binned LED arrays for lower BOM cost
- Supports 12V (9V to 16V) or 5V supply voltage operation
- AnyMode™ comprehensive dimming control improves picture quality
- 12-bit PWM dimming, 10-bit independent analog dimming
- Head, tail, center mode PWM alignments to reduce motion blur
- PWM dimming range: 0% to 99.9%
- Programmable slew rate for better EMI control
- Comprehensive protection features including individual LED short protection, open detection, and over-temperature protection
- Microcontroller interrupt interface
- High accuracy internal current setting
- 66mA per channel max; supports 2-channel grouping
- SPI daisy-chain interface simplifies design when supporting more than 16 LED strings
- 3 SPI communication protection modes in one LED driver
- Internal PLL ensures jitter-free operation even with noisy VSYNC signal
Applications
TV, Monitor, Notebook
