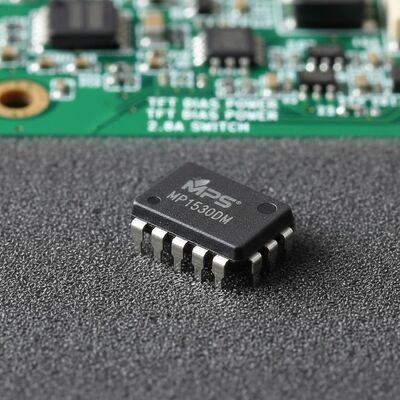

MP1530DM Integrated Circuit Chip - Triple Outputs Boost Plus Linear Regulators for TFT Bias
The MP1530DM combines a triple output step-up converter with linear regulators to provide a complete DC/DC solution specifically designed to power TFT LCD panels from regulated 3.3V or 5V supplies.
Product Overview
This advanced device integrates a 1.4MHz fixed frequency step-up converter with positive and negative linear regulators. The step-up converter switch node drives two charge pumps that supply power to their respective linear regulators. The positive linear regulator input withstands up to 38V, while the negative regulator handles down to -20V. A single on/off control enables all three outputs with internal sequencing for simplified startup. Internal soft-start prevents input overload, and cycle-by-cycle current limiting reduces component stress.
Technical Specifications
| Applications |
Converter, TFT LCD |
| Voltage - Input |
2.7V ~ 5.5V |
| Number of Outputs |
3 |
| Voltage - Output |
Multiple |
| Operating Temperature |
-40°C ~ 85°C |
| Mounting Type |
Surface Mount |
Key Features
- 2.7 to 5.5V Operating Input Range
- 2.8A Switch Current Limit
- 3 Outputs in a Single Package
- Step-Up Converter up to 22V
- Positive 20mA Linear Regulator
- Negative 20mA Linear Regulator
- 250mΩ Internal Power MOSFET Switch
- Up to 95% Efficiency
- 1.4MHz Fixed Frequency
- Internal Power-On Sequencing
- Adjustable Soft-Start/Fault Timer
- Cycle-by-Cycle Over Current Protection
- Under Voltage Lockout
- Ready Flag
Primary Applications
- TFT LCD Displays
- Portable DVD Players
- Tablet PCs
- Car Navigation Displays
