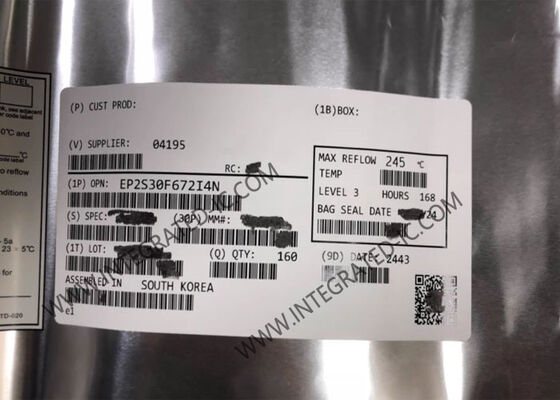

EP2S30F672I4N Field Programmable Gate Array
The EP2S30F672I4N is a high-performance field-programmable gate array (FPGA) based on a 90nm process and belonging to the Stratix® II series. It utilizes a 672-pin FBGA package and is specifically designed to meet the complex logic and high-performance demands of sectors such as communications, industrial control, medical technology, and military applications.
Stratix II devices contain a two-dimensional row- and column-based architecture to implement custom logic. A series of column and row interconnects of varying length and speed provides signal interconnects between logic array blocks (LABs), memory block structures (M512 RAM, M4K RAM, and M-RAM blocks), and digital signal processing (DSP) blocks.
Technical Specifications
| Parameter |
Value |
| Number of LABs/CLBs |
1694 |
| Number of Logic Elements/Cells |
33880 |
| Total RAM Bits |
1369728 |
| Number of I/O |
500 |
| Voltage Supply |
1.15V ~ 1.25V |
| Mounting Type |
Surface Mount |
| Operating Temperature |
-40°C ~ 100°C (TJ) |
Key Features
This device provides up to six phase-locked loops (PLLs) for clock management, supporting external memory interfaces such as QDRII SRAM, RLDRAM II, and DDR SDRAM. It also offers sixteen dedicated DSP modules capable of delivering 16.8 GMAC/s of multiply-accumulate performance.
Applications
- Communications equipment (wireless base stations, network processors)
- Industrial automation and control
- Medical imaging and equipment
- Military and aerospace systems
- Video and image processing
