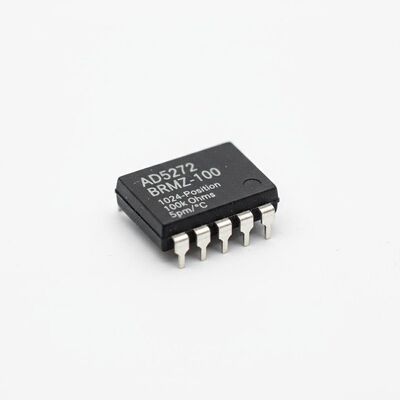

AD5272BRMZ-100 Digital Rheostat Integrated Circuit Chip with 1024-Position Resolution, 100k Ohms Resistance, and 5ppm/°C Temperature Coefficient

AD5272BRMZ-100 Digital Rheostat Integrated Circuit Chip with 1024-Position Resolution, 100k Ohms Resistance, and 5ppm/°C Temperature Coefficient
AD5272BRMZ-100 Digital Rheostat Integrated Circuit Chip with 1024-Position Resolution, 100k Ohms Resistance, and 5ppm/°C Temperature Coefficient AD5272BRMZ-100 Digital Rheostat Integrated Circuit Chip with 1024-Position Resolution, 100k Ohms Resistance, and 5ppm/°C Temperature Coefficient

Large Image :  AD5272BRMZ-100 Digital Rheostat Integrated Circuit Chip with 1024-Position Resolution, 100k Ohms Resistance, and 5ppm/°C Temperature Coefficient

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AD5272BRMZ-100
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MSOP-10
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

AD5272BRMZ-100 Digital Rheostat Integrated Circuit Chip with 1024-Position Resolution, 100k Ohms Resistance, and 5ppm/°C Temperature Coefficient

Description
Part Number: AD5272BRMZ-100 Number Of Taps: 1024
Resistance (Ohms): 100k Temperature Coefficient (Typ): 5ppm/°C
Tolerance: ±1% Voltage - Supply: 2.7V ~ 5.5V, ±2.5V ~ 2.75V
Highlight:

1024-Position Digital Rheostat

,

100k Ohms Integrated Circuit Chip

,

5ppm/°C Temperature Coefficient Variable Resistor

AD5272BRMZ-100 Integrated Circuit Chip
Single-Channel 1024-Position Digital Rheostats in MSOP10 Package
Product Overview
The AD5272BRMZ-100 is a single-channel, 1024-position digital rheostat that combines industry-leading variable resistor performance with nonvolatile memory in a compact package. This IC ensures less than 1% end-to-end resistor tolerance error and offers 50-times programmable (50-TP) memory.
Technical Specifications
Parameter Value
Taper Linear
Configuration Rheostat
Number of Circuits 1
Number of Taps 1024
Resistance 100k Ohms
Interface I2C
Memory Type Non-Volatile
Voltage Supply 2.7V ~ 5.5V, ±2.5V ~ 2.75V
Features Selectable Address
Tolerance ±1%
Temperature Coefficient 5ppm/°C
Mounting Type Surface Mount
Supplier Device Package 10-MSOP
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Operating Temperature -40°C ~ 125°C
Resistance - Wiper (Typ) 35 Ohms
Key Features
  • Single-channel, 1024-position resolution
  • 20 kΩ, 50 kΩ, 100 kΩ nominal resistance options
  • Maximum ±1% nominal resistor tolerance error
  • 50-times programmable (50-TP) wiper memory
  • Rheostat mode temperature coefficient: 5 ppm/°C
  • 2.7 V to 5.5 V single-supply operation
  • ±2.5 V to ±2.75 V dual-supply operation for AC or bipolar operations
  • I2C-compatible interface
  • Wiper setting readback capability
  • Power on refreshed from 50-TP memory
  • Compact MSOP, 10-lead 3 mm * 4.9 mm * 1.1 mm package
Applications
  • Mechanical rheostat replacements
  • Op-amp: variable gain control
  • Instrumentation: gain, offset adjustment
  • Programmable voltage to current conversions
  • Programmable filters, delays, time constants
  • Programmable power supply
  • Sensor calibration
