IRLR3114ZTRPBF 40V 130A 5.2mOhm N-Channel HEXFET Power MOSFET Transistor Integrated Circuit Chip

IRLR3114ZTRPBF 40V 130A 5.2mOhm N-Channel HEXFET Power MOSFET Transistor Integrated Circuit Chip
IRLR3114ZTRPBF 40V 130A 5.2mOhm N-Channel HEXFET Power MOSFET Transistor Integrated Circuit Chip

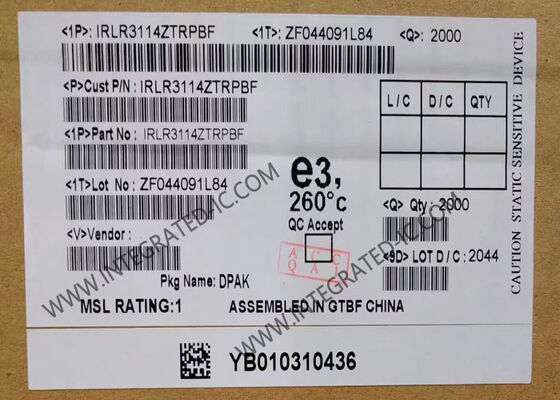

Large Image :  IRLR3114ZTRPBF 40V 130A 5.2mOhm N-Channel HEXFET Power MOSFET Transistor Integrated Circuit Chip

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IRLR3114ZTRPBF
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TO-252-3
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

IRLR3114ZTRPBF 40V 130A 5.2mOhm N-Channel HEXFET Power MOSFET Transistor Integrated Circuit Chip

Description
Part Number: IRLR3114ZTRPBF Transistor Polarity:: N-Channel
Number Of Channels:: 1 Channel Vds - Drain-Source Breakdown Voltage:: 40 V
Id - Continuous Drain Current:: 130 A Rds On - Drain-Source Resistance:: 5.2 MOhms
Highlight:

40V Drain-Source Voltage Power MOSFET

,

130A Continuous Drain Current HEXFET Transistor

,

5.2mOhm Drain-Source Resistance Integrated Circuit Chip

IRLR3114ZTRPBF Integrated Circuit Chip 40V Single N-Channel HEXFET Power MOSFET Transistors
This HEXFET Power MOSFET utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. Key features include a 175°C junction operating temperature, fast switching speed, and improved repetitive avalanche rating, making this design highly efficient and reliable for diverse applications.
Technical Specifications
Parameter Value
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 42A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 4.9mOhm @ 42A, 10V
Vgs(th) (Max) @ Id 2.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs 56 nC @ 4.5 V
Vgs (Max) ±16V
Input Capacitance (Ciss) (Max) @ Vds 3810 pF @ 25 V
Power Dissipation (Max) 140W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Key Features
  • Advanced Process Technology
  • Ultra Low On-Resistance
  • 175°C Operating Temperature
  • Fast Switching
  • Repetitive Avalanche Allowed up to Tjmax
  • Logic Level
Primary Applications
