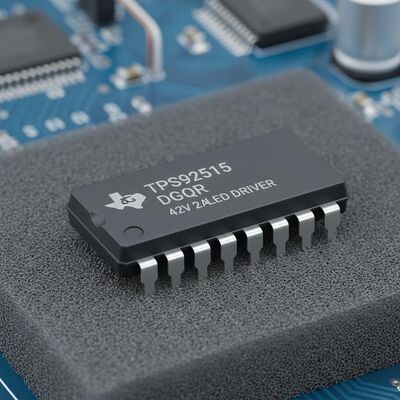

TPS92515DGQR Integrated Circuit Chip 42V 2A LED Driver IC with PWM Dimming in HVSSOP-10 Package

TPS92515DGQR Integrated Circuit Chip 42V 2A LED Driver IC with PWM Dimming in HVSSOP-10 Package
TPS92515DGQR Integrated Circuit Chip 42V 2A LED Driver IC with PWM Dimming in HVSSOP-10 Package TPS92515DGQR Integrated Circuit Chip 42V 2A LED Driver IC with PWM Dimming in HVSSOP-10 Package

Large Image :  TPS92515DGQR Integrated Circuit Chip 42V 2A LED Driver IC with PWM Dimming in HVSSOP-10 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS92515DGQR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: HVSSOP-10
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

TPS92515DGQR Integrated Circuit Chip 42V 2A LED Driver IC with PWM Dimming in HVSSOP-10 Package

Description
Part Number: TPS92515DGQR Number Of Outputs: 1 Output
Output Current: 2 A Operating Frequency: 2 MHz
Supply Current - Max: 1.5 MA Operating Temperature: -40°C ~ 150°C (TJ)
Highlight:

42V LED Driver IC

,

2A LED Driver IC

,

PWM Dimming LED Driver IC

TPS92515DGQR Integrated Circuit Chip
42V 2A Illumination LED Driver IC HVSSOP-10
Product Overview
The TPS92515DGQR is a compact monolithic switching regulator integrating a low resistance N-Channel MOSFET. Designed specifically for high-brightness LED lighting applications, this device delivers exceptional efficiency, high bandwidth, PWM and/or analog dimming capabilities in a small form factor.
Technical Specifications
Type DC DC Regulator
Topology Step-Down (Buck)
Internal Switch(s) Yes
Number of Outputs 1
Voltage - Supply (Min) 5.5V
Voltage - Supply (Max) 42V
Current - Output / Channel 2A
Dimming Analog, PWM
Applications Lighting
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-HVSSOP
Key Features
  • Integrated 290-mΩ (typ) Internal N-Channel FET
  • Input Voltage Range: 5.5V to 42V (TPS92515x) / 5.5V to 65V (TPS92515HVx)
  • Operation Down to 5.15V After Start-Up
  • Low Offset High-side Peak Current Comparator
  • Constant Average Current, up to 2A
  • Inherent Cycle-by-Cycle Current Limit
  • Multiple Dimming Methods:
    • 10,000:1 Shunt PWM Dimming Range
    • 1000:1 PWM Dimming Range
    • 200:1 Analog Dimming Range
  • Simple Constant Off-time Control with No Loop Compensation
  • Fast Transient Response
  • Thermally Enhanced HVSSOP Package
  • Integrated Thermal Protection
Applications
  • Automotive Lighting: LED Switched Matrix AFS Headlamps, DRL, High/Low Beam, Fog, Rear, Turn Signal, Side Marker, Aftermarket
  • Industrial Lighting: Factory Automation, Time of Flight (TOF), Appliances, Retail Illumination, Machine Vision and Inspection, Emergency, Exit and/or Safety Lighting, Medical Lighting, Stage and Area Lighting
  • Agricultural, Marine, and Heavy Industry Lighting
  • High Contrast Shunt FET Dimming Applications
