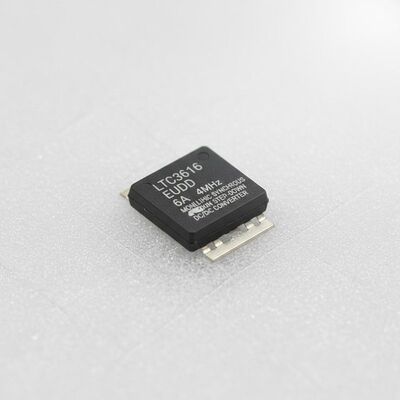

LTC3616EUDD Integrated Circuit Chip 6A 4MHz Monolithic Synchronous Step-Down DC/DC Converter with Low Quiescent Current

LTC3616EUDD Integrated Circuit Chip 6A 4MHz Monolithic Synchronous Step-Down DC/DC Converter with Low Quiescent Current
LTC3616EUDD Integrated Circuit Chip 6A 4MHz Monolithic Synchronous Step-Down DC/DC Converter with Low Quiescent Current LTC3616EUDD Integrated Circuit Chip 6A 4MHz Monolithic Synchronous Step-Down DC/DC Converter with Low Quiescent Current

Large Image :  LTC3616EUDD Integrated Circuit Chip 6A 4MHz Monolithic Synchronous Step-Down DC/DC Converter with Low Quiescent Current

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC3616EUDD
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: QFN-24
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

LTC3616EUDD Integrated Circuit Chip 6A 4MHz Monolithic Synchronous Step-Down DC/DC Converter with Low Quiescent Current

Description
Part Number: LTC3616EUDD Output Voltage: 600 MV To 5.5 V
Output Current: 6 A Quiescent Current: 75 UA
Switching Frequency: 4 MHz Load Regulation: 2.6 %
Highlight:

6A Output Current DC/DC Converter

,

4MHz Switching Frequency Integrated Circuit Chip

,

Low Quiescent Current Monolithic Synchronous Buck Regulator

LTC3616EUDD Integrated Circuit Chip 6A 4MHz Monolithic Synchronous Step-Down DC/DC Converter
The LTC3616EUDD is a low quiescent current monolithic synchronous buck regulator utilizing a current mode, constant frequency architecture. In sleep mode, the no-load DC supply current is only 70μA while maintaining output voltage through Burst Mode operation. With a 2.25V to 5.5V input supply voltage range, this converter is ideally suited for single Li-Ion and fixed low voltage input applications. The 100% duty cycle capability enables low dropout operation, extending battery life in portable systems.
Technical Specifications
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 2.25V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 5.5V
Current - Output 6A
Frequency - Switching 300kHz ~ 4MHz
Synchronous Rectifier Yes
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 24-WFQFN Exposed Pad
Supplier Device Package 24-QFN (3x5)
Key Features
  • 6A Output Current
  • 2.25V to 5.5V Input Voltage Range
  • Low Output Ripple Burst Mode® Operation: IQ = 75μA
  • ±1% Output Voltage Accuracy
  • Output Voltage Down to 0.6V
  • High Efficiency: Up to 95%
  • Low Dropout Operation: 100% Duty Cycle
  • Programmable Slew Rate on SW Node Reduces Noise and EMI
  • Adjustable Switching Frequency: Up to 4MHz
  • Optional Active Voltage Positioning (AVP) with Internal Compensation
  • Selectable Pulse-Skipping/Forced Continuous/Burst Mode Operation with Adjustable Burst Clamp
  • Programmable Soft-Start
  • Inputs for Start-Up Tracking or External Reference
  • DDR Memory Mode, IOUT = ±3A
  • Available in a 24-Pin 3mm * 5mm QFN Thermally Enhanced Package
Applications
Point-of-Load Supplies
Distributed Power Supplies
Portable Computer Systems
DDR Memory Termination
Handheld Devices
