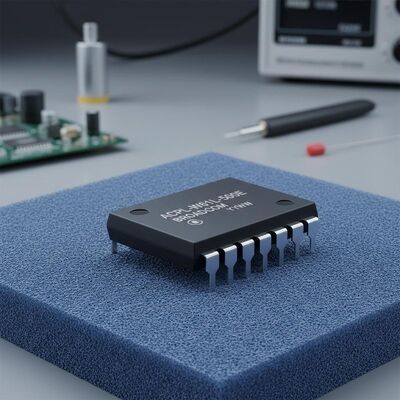

ACPL-W61L-500E Low-Power 10MBd Digital CMOS Optocouplers with 5000Vrms Isolation Integrated Circuit Chip

Large Image : ACPL-W61L-500E Low-Power 10MBd Digital CMOS Optocouplers with 5000Vrms Isolation Integrated Circuit Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ACPL-W61L-500E

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	6-SOIC
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ACPL-W61L-500E Low-Power 10MBd Digital CMOS Optocouplers with 5000Vrms Isolation Integrated Circuit Chip

Description

Part Number:	ACPL-W61L-500E	Number Of Channels:	1
Inputs - Side 1/Side 2:	1/0	Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs	Input Type:	DC
Highlight:	Low-Power Digital CMOS Optocouplers , 10MBd Integrated Circuit Chip , 5000Vrms Isolation Optocoupler

ACPL-W61L-500E Integrated Circuit Chip Low-Power 10MBd Digital CMOS Optocouplers

ACPL-W61L-500E digital optocouplers combine an AlGaAs light emitting diode (LED) and an integrated high gain photodetector. The optocoupler consumes low power, at maximum 1.3 mA IDD current per channel across temperature. With a forward LED current as low as 1.6 mA, most microprocessors can directly drive the LED.

Specifications

Parameter	Value
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Input Type	DC
Output Type	Push-Pull, Totem Pole
Current - Output / Channel	10 mA
Data Rate	10MBd
Propagation Delay tpLH / tpHL (Max)	80ns, 80ns
Rise / Fall Time (Typ)	12ns, 12ns
Voltage - Forward (Vf) (Typ)	1.3V
Current - DC Forward (If) (Max)	8mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 105°C

Key Features

Low IDD current: 1.3 mA/channel maximum
Low input current: 1.6 mA
Built-in slew-rate controlled outputs
20 kV/µs minimum Common-Mode Rejection (CMR) at VCM = 1000V
High speed: 10 MBd minimum
Guaranteed AC and DC performance over wide temperature: -40°C to +105°C
Package selection: SO-5, SO-8, stretched SO-6, and stretched SO-8
Safety approval: UL 1577 recognized, CSA approval, IEC/EN/DIN EN 60747-5-5 approval for Reinforced Insulation
RoHS-compliant

Applications

Communication interfaces: RS485, CANBus, and I2C
Microprocessor system interfaces
Digital isolation for A/D and D/A converters
