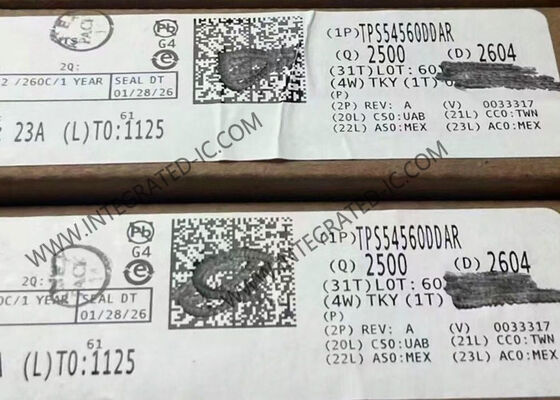

TPS54560DDAR Integrated Circuit Chip 4.5V to 60V 5A Step Down DC-DC Converter with Eco-mode™ Efficiency

TPS54560DDAR Integrated Circuit Chip 4.5V to 60V 5A Step Down DC-DC Converter with Eco-mode™ Efficiency
TPS54560DDAR Integrated Circuit Chip 4.5V to 60V 5A Step Down DC-DC Converter with Eco-mode™ Efficiency TPS54560DDAR Integrated Circuit Chip 4.5V to 60V 5A Step Down DC-DC Converter with Eco-mode™ Efficiency

Large Image :  TPS54560DDAR Integrated Circuit Chip 4.5V to 60V 5A Step Down DC-DC Converter with Eco-mode™ Efficiency

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS54560DDAR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-PowerSOIC
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

TPS54560DDAR Integrated Circuit Chip 4.5V to 60V 5A Step Down DC-DC Converter with Eco-mode™ Efficiency

Description
Part Number: TPS54560DDAR Output Voltage:: 800 MV To 58.8 V
Output Current:: 5 A Number Of Outputs:: 1 Output
Input Voltage - Min:: 4.5 V Input Voltage - Max:: 60 V
Highlight:

4.5V to 60V Input DC-DC Converter

,

5A Output Current Step Down Regulator

,

Eco-mode™ Efficiency Integrated Circuit Chip

TPS54560DDAR Integrated Circuit Chip
4.5V to 60V 5A Step Down DC-DC Converter with Eco-mode™
Product Overview
The TPS54560DDAR is a 60V, 5A step-down regulator featuring an integrated high-side MOSFET. Designed to withstand load dump pulses up to 65V per ISO 7637, this device employs current mode control for simplified external compensation and flexible component selection.
Key Specifications
Function Step-Down
Output Configuration Positive
Topology Buck, Split Rail
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 60V
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 58.8V
Current - Output 5A
Frequency - Switching 100kHz ~ 2.5MHz
Synchronous Rectifier No
Operating Temperature -40°C ~ 150°C (TJ)
Advanced Features
  • High Efficiency at Light Loads with Pulse Skipping Eco-mode™
  • 92-mΩ High-Side MOSFET
  • 146 µA Operating Quiescent Current and 2 µA Shutdown Current
  • 100 kHz to 2.5 MHz Fixed Switching Frequency
  • Synchronizes to External Clock
  • Low Dropout at Light Loads with Integrated BOOT Recharge FET
  • Adjustable UVLO Voltage and Hysteresis
  • 0.8 V 1% Internal Voltage Reference
  • 8-Terminal HSOP with PowerPAD™ Package
  • -40°C to 150°C TJ Operating Range
Typical Applications
  • Industrial Automation and Motor Control
  • Vehicle Accessories: GPS, Entertainment Systems
  • USB Dedicated Charging Ports and Battery Chargers
  • 12V, 24V and 48V Industrial, Automotive and Communications Power Systems
