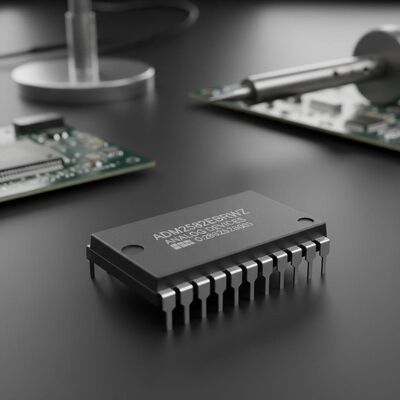

ADM2582EBRWZ Integrated Circuit Chip with 2500Vrms Isolation and 16 Mbps Data Rate RS-485 Transceiver with ±15 kV ESD Protection

ADM2582EBRWZ Integrated Circuit Chip with 2500Vrms Isolation and 16 Mbps Data Rate RS-485 Transceiver with ±15 kV ESD Protection
ADM2582EBRWZ Integrated Circuit Chip with 2500Vrms Isolation and 16 Mbps Data Rate RS-485 Transceiver with ±15 kV ESD Protection ADM2582EBRWZ Integrated Circuit Chip with 2500Vrms Isolation and 16 Mbps Data Rate RS-485 Transceiver with ±15 kV ESD Protection

Large Image :  ADM2582EBRWZ Integrated Circuit Chip with 2500Vrms Isolation and 16 Mbps Data Rate RS-485 Transceiver with ±15 kV ESD Protection

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ADM2582EBRWZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-20
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

ADM2582EBRWZ Integrated Circuit Chip with 2500Vrms Isolation and 16 Mbps Data Rate RS-485 Transceiver with ±15 kV ESD Protection

Description
Part Number: ADM2582EBRWZ Number Of Channels: 3 Channel
Data Rate: 16 Mb/s Isolation Voltage: 2500 Vrms
Operating Supply Current: 230 MA Propagation Delay Time: 100 Ns
Highlight:

2500Vrms Isolation RS-485 Transceiver

,

16 Mbps Data Rate Integrated Circuit Chip

,

±15 kV ESD Protection Isolated Transceiver

ADM2582EBRWZ Integrated Circuit Chip
2500Vrms Isolated RS-485 Transceiver SOIC-20
Product Overview
The ADM2582EBRWZ is a fully integrated signal and power isolated data transceiver with ±15 kV ESD protection, designed for high-speed communication on multipoint transmission lines. This device includes an integrated isolated DC-to-DC power supply, eliminating the need for external DC-to-DC isolation blocks.
Technical Specifications
Technology Magnetic Coupling
Type RS422, RS485
Isolated Power Yes
Number of Channels 2
Inputs - Side 1/Side 2 1/1
Channel Type Unidirectional
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 25kV/µs
Data Rate 16Mbps
Rise / Fall Time (Typ) 15ns, 15ns (Max)
Voltage - Supply 3.3V, 5V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 20-SOIC (0.295", 7.50mm Width)
Supplier Device Package 20-SOIC
Key Features
  • Isolated RS-485/RS-422 transceiver, configurable as half or full duplex
  • isoPower® integrated isolated DC-to-DC converter
  • ±15 kV ESD protection on RS-485 input/output pins
  • Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E)
  • Data rate: 16 Mbps
  • 5 V or 3.3 V operation
  • Connect up to 256 nodes on one bus
  • Open- and short-circuit, fail-safe receiver inputs
  • High common-mode transient immunity: >25 kV/µs
  • Thermal shutdown protection
Applications
  • Isolated RS-485/RS-422 interfaces
  • Industrial field networks
  • Multipoint data transmission systems
