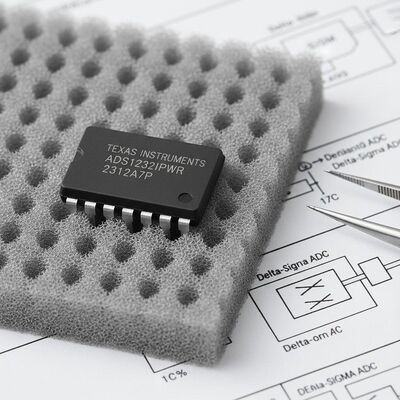

ADS1232IPWR 24-Bit 2-Channel Delta-Sigma ADC Integrated Circuit Chip for Bridge Sensors

Large Image : ADS1232IPWR 24-Bit 2-Channel Delta-Sigma ADC Integrated Circuit Chip for Bridge Sensors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ADS1232IPWR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TSSOP-24
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

ADS1232IPWR 24-Bit 2-Channel Delta-Sigma ADC Integrated Circuit Chip for Bridge Sensors

Description

Part Number:	ADS1232IPWR	Resolution::	24 Bit
Number Of Channels::	2 Channel	Interface Type::	I2C, SPI
Sampling Rate::	80 S/s	Pd - Power Dissipation::	13.1 MW
Highlight:	24-Bit ADC , 2-Channel Integrated Circuit Chip , Bridge Sensor Analog-to-Digital Converter

ADS1232IPWR Integrated Circuit Chip

Precision 2-Channel 24-Bit Delta-Sigma ADCs for Bridge Sensors

Product Overview

The ADS1232IPWR is a high-precision, 24-bit analog-to-digital converter (ADC) featuring a low-noise programmable gain amplifier (PGA), precision delta-sigma ADC, and internal oscillator. This complete front-end solution is specifically designed for bridge sensor applications including weigh scales, strain gauges, and pressure sensors.

Technical Specifications

Parameter	Specification
Number of Bits	24
Sampling Rate	80 SPS
Number of Inputs	2
Input Type	Differential, Single Ended
Data Interface	SPI
Configuration	MUX-PGA-ADC
Number of A/D Converters	1
Architecture	Sigma-Delta
Reference Type	External
Analog Supply Voltage	2.7V ~ 5.3V
Digital Supply Voltage	2.7V ~ 5.3V
Features	PGA
Operating Temperature	-40°C ~ 105°C

Key Features

Complete front-end solution for bridge sensors
23.5-bits effective resolution at gain = 1
19.2-bits noise-free resolution at gain = 64
Low-noise programmable gain amplifier
Selectable gains of 1, 2, 64, and 128
RMS noise: 17nV at 10SPS (gain = 128), 44nV at 80SPS (gain = 128)
100dB simultaneous 50Hz and 60Hz rejection
Flexible clocking with low-drift internal oscillator and optional external crystal
Selectable 10SPS or 80SPS data rates
Easy ratiometric measurements with external voltage reference up to 5V
Two-channel differential input with internal temperature sensor
Two-wire serial interface
Supply voltage range: 2.7V to 5.3V
Temperature range: -40°C to +105°C
Package: TSSOP-24

Applications

Weigh scales
PLC weight modules
Pressure sensors
