1318745-2 32 Position 2.2 mm Pitch Automotive Grade Signal Header Connector for PCB Applications

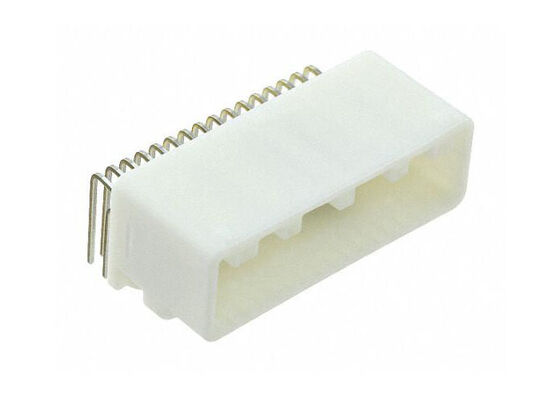

Large Image : 1318745-2 32 Position 2.2 mm Pitch Automotive Grade Signal Header Connector for PCB Applications

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	1318745-2

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	32POS
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

1318745-2 32 Position 2.2 mm Pitch Automotive Grade Signal Header Connector for PCB Applications

Description

Part Number:	1318745-2	Number Of Positions:	32 Position
Pitch:	2.2 Mm (0.087 In)	Number Of Rows:	2 Row
Voltage Rating:	12VDC	Operating Temperature:	-30°C ~ 105°C
Highlight:	32 Position Connector , 2.2 mm Pitch Signal Header , Automotive Grade Connector

1318745-2 Connectors AMP Signal Header 32POS Automotive Connectors

The 1318745-2 is a 32-position AMP Signal Header Automotive Connector specifically engineered for automotive and industrial signal connections. Featuring a 2.2 mm pitch and fully enclosed male pin structure, this connector is designed for PCB through-hole soldering and delivers stable mechanical and electrical performance.

Technical Specifications

Specification	Details
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.087" (2.20mm)
Number of Positions	32
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.217" (5.50mm)
Contact Length - Post	0.157" (4.00mm)
Insulation Height	0.610" (15.49mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Mounting Flange
Operating Temperature	-30°C ~ 105°C
Material Flammability Rating	UL94 HB
Insulation Color	Natural
Voltage Rating	12VDC

Key Features

32 positions with 2-row configuration for horizontal PCB mounting
Through-hole screw termination method with 2.2 mm centerline pitch
Wire-to-board connector system compatible with 12V nominal voltage architecture
Angled plug design saves vertical space on PCB, ideal for compact layouts and side-entry wiring applications
Built-in locking mechanism ensures secure, vibration-resistant connection with mating sockets
High compatibility with standard TH/.025 series female connectors and 0.63 mm terminals
Maximum voltage rating of 12VDC with operating voltage of 12VDC
