ISL99390FRZ-TR5935 90A Smart Power Stage Module with High Accuracy Current and Temperature Monitors

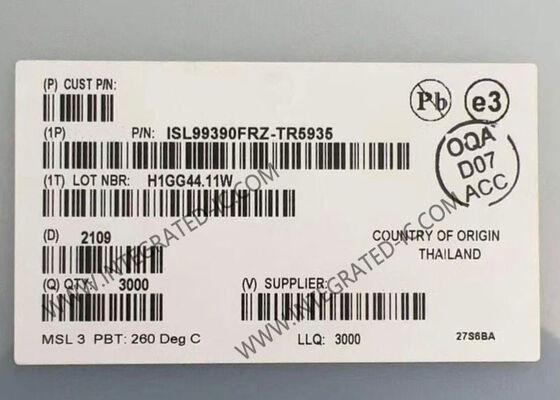

Large Image : ISL99390FRZ-TR5935 90A Smart Power Stage Module with High Accuracy Current and Temperature Monitors

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	ISL99390FRZ-TR5935

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-39
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10000 Pieces per Day

Contact Now

ISL99390FRZ-TR5935 90A Smart Power Stage Module with High Accuracy Current and Temperature Monitors

Description

Part Number:	ISL99390FRZ-TR5935	Output Current::	90 A
Input Voltage - Max::	16 V	Input Voltage - Min::	3 V
Maximum Output Voltage::	3.3 V	Input Voltage Range::	3 V To 16 V
Highlight:	90A Output Current Smart Power Stage Module , High Accuracy Current Monitor Integrated Circuit Chip , Integrated Temperature Monitor SPS Module

ISL99390FRZ-TR5935 Integrated Circuit Chip 90A Smart Power Stage Module

90A Smart Power Stage with integrated high accuracy current and temperature monitors, compatible with Digital Multiphase controllers and phase doublers.

Product Overview

The ISL99390FRZ-TR5935 offers best-in-class current sense accuracy over line, load, and temperature. When combined with a Renesas Digital PWM controller, these devices enable precision system level power management and superior transient response for loadline based regulators. The thermally enhanced 5x6 package enables high density designs while simplifying design by eliminating typical DCR sensing networks and associated thermal compensation components.

Technical Specifications

Specification	Details
Output Configuration	Half Bridge
Applications	DC-DC Converters
Load Type	Inductive
Technology	NMOS
Voltage - Supply	3V ~ 16V
Voltage - Load	3V ~ 16V
Features	Bootstrap Circuit
Fault Protection	Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO

Key Features

VIN input range: +3.0V to +16V
Supports 90A DC current
3.3V compatible tri-state PWM input
5V compatible tri-state PWM input
±3% accuracy continuous signal for current monitor
8mV/°C temperature monitor, TOUT
Comprehensive fault protection for high system reliability
High-side FET short and overcurrent protection
Smart Reverse Overcurrent Protection (SROCP)
Over-temperature protection
VCC Undervoltage Lockout (UVLO)
Enable Input and fault reporting outputs
Low power mode operation
Up to 1.25MHz switching frequency
RoHS-compliant, 5x6 QFN package

Applications

Accelerators (GPU, ASIC, Artificial Intelligence)
Core, graphic, and memory VRs for microprocessors
High density VR for server, networking, and cloud computing
POL DC/DC converters and video gaming consoles
