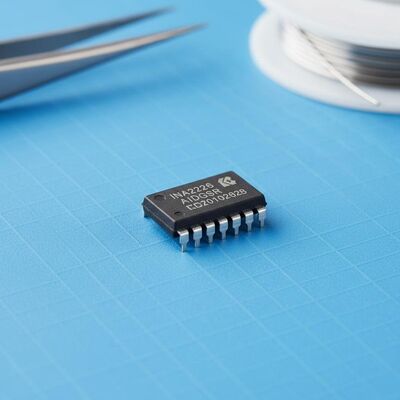

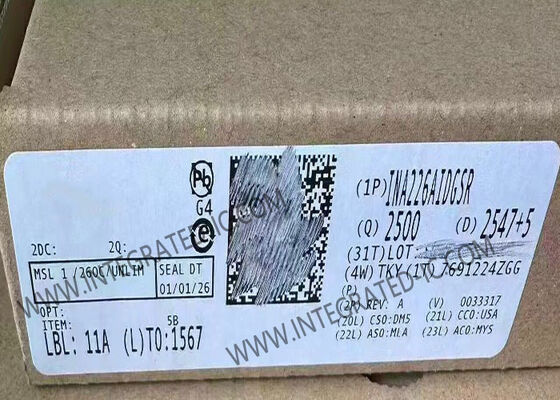

INA226AIDGSR Integrated Circuit Chip 36V Input Voltage 16-Bit Accuracy Current Shunt and Power Monitor with I2C/SMBUS Interface

INA226AIDGSR Integrated Circuit Chip 36V Input Voltage 16-Bit Accuracy Current Shunt and Power Monitor with I2C/SMBUS Interface
INA226AIDGSR Integrated Circuit Chip 36V Input Voltage 16-Bit Accuracy Current Shunt and Power Monitor with I2C/SMBUS Interface INA226AIDGSR Integrated Circuit Chip 36V Input Voltage 16-Bit Accuracy Current Shunt and Power Monitor with I2C/SMBUS Interface

Large Image :  INA226AIDGSR Integrated Circuit Chip 36V Input Voltage 16-Bit Accuracy Current Shunt and Power Monitor with I2C/SMBUS Interface

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: INA226AIDGSR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VSSOP-10
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

INA226AIDGSR Integrated Circuit Chip 36V Input Voltage 16-Bit Accuracy Current Shunt and Power Monitor with I2C/SMBUS Interface

Description
Part Number: INA226AIDGSR Product: Current And Power Monitors
Sensing Method: High Or Low Side Operating Supply Current: 420 UA
Accuracy: 0.1 % Input Voltage Range: 0 V To 36 V
Highlight:

36V Input Voltage Integrated Circuit Chip

,

16-Bit Accuracy Current Shunt and Power Monitor

,

I2C/SMBUS Interface INA226AIDGSR

INA226AIDGSR Integrated Circuit Chip
36V 16-Bit Current Shunt and Power Monitor in VSSOP-10 Package
Product Overview
The INA226AIDGSR is a precision current shunt and power monitor featuring an I2C™ or SMBUS-compatible interface. This device monitors both shunt voltage drop and bus supply voltage, with programmable calibration values, conversion times, and averaging capabilities. The integrated multiplier enables direct readouts of current in amperes and power in watts.
Technical Specifications
Function Current Monitor
Sensing Method High/Low-Side
Accuracy ±0.02%
Voltage Input 0V ~ 36V
Current Output 10mA
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package 10-VSSOP
Key Features
  • Senses bus voltages from 0V to 36V
  • High-side or low-side sensing capability
  • Comprehensive reporting of current, voltage, and power
  • High accuracy specifications:
    • Gain error: 0.1% (maximum)
    • Offset: 10µV (maximum)
  • Configurable averaging options
  • 16 programmable addresses
  • Operates from 2.7V to 5.5V power supply
  • Compact 10-pin DGS (VSSOP) package
Typical Applications
  • Rack servers
  • Wireless infrastructure
  • High performance computing
  • Power management systems
  • Battery cell monitors and balancers
  • Power Supplies
  • Test Equipment
