TPS63020DSJR High Efficiency 4A Output Current 2.4MHz Switching Frequency Buck-Boost Converter Integrated Circuit Chip

Large Image : TPS63020DSJR High Efficiency 4A Output Current 2.4MHz Switching Frequency Buck-Boost Converter Integrated Circuit Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS63020DSJR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	VSON-14
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TPS63020DSJR High Efficiency 4A Output Current 2.4MHz Switching Frequency Buck-Boost Converter Integrated Circuit Chip

Description

Part Number:	TPS63020DSJR	Topology:	Boost, Buck
Output Current:	4 A	Quiescent Current:	365 UA
Switching Frequency:	2.4 MHz	Load Regulation:	0.5 %
Highlight:	High Efficiency Buck-Boost Converter , 4A Output Current Integrated Circuit Chip , 2.4MHz Switching Frequency Power Management IC

TPS63020DSJR Integrated Circuit Chip

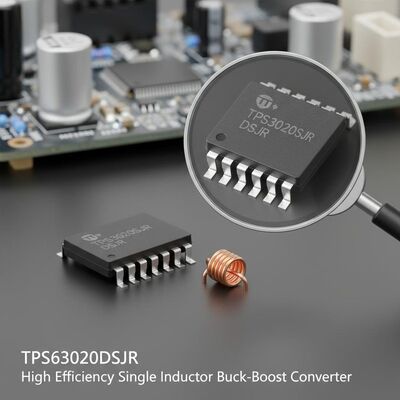

High Efficiency Single Inductor Buck-Boost Converter VSON14

Product Overview

The TPS63020DSJR is a high-efficiency single inductor buck-boost converter with 4A switch capability, providing optimal power supply solutions for various battery-powered applications and supply rails.

Key Specifications

Function	Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck-Boost
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	1.8V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.2V
Voltage - Output (Max)	5.5V
Current - Output	3.5A (Switch)
Frequency - Switching	2.4MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	14-VFDFN Exposed Pad
Supplier Device Package	14-VSON (4x3)

Technical Features

Input voltage range: 1.8 V to 5.5 V
Adjustable output voltage: 1.2 V to 5.5 V
Output current for VIN > 2.5 V, VOUT = 3.3 V: 2 A
High efficiency over the entire load range
Operating quiescent current: 25 µA
Power save mode with mode selection
Average current mode buck-boost architecture
Automatic transition between modes
Fixed frequency operation at 2.4 MHz
Synchronization possible
Power good output
Safety and robust operation features including overtemperature and overvoltage protection
Load disconnect during shutdown

Applications

Pre-regulation in battery-powered devices: EPOS (portable data terminal, barcode scanner), e-cigarette, single board computer, IP network camera, video doorbell, land mobile radios

Voltage stabilizer: wired communication, wireless communication, PLC, optical module

Backup supercapacitor supply: electricity meter, solid state drive (SSD) - enterprise
