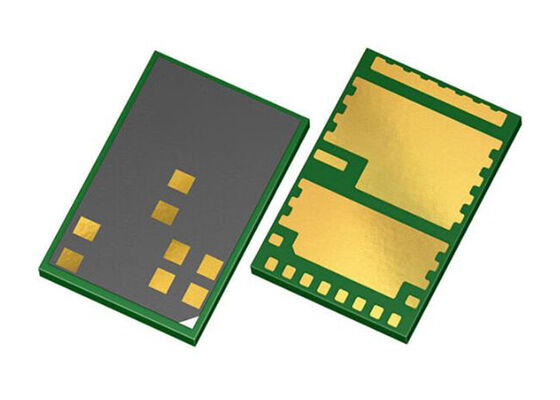

TDA22590 90A Output Current OptiMOS™ Power Stage IC with 4mm x 6mm Package and 2MHz Switching Frequency

TDA22590 90A Output Current OptiMOS™ Power Stage IC with 4mm x 6mm Package and 2MHz Switching Frequency
TDA22590 90A Output Current OptiMOS™ Power Stage IC with 4mm x 6mm Package and 2MHz Switching Frequency

Large Image :  TDA22590 90A Output Current OptiMOS™ Power Stage IC with 4mm x 6mm Package and 2MHz Switching Frequency

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TDA22590
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: PG-UFLGA-34
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

TDA22590 90A Output Current OptiMOS™ Power Stage IC with 4mm x 6mm Package and 2MHz Switching Frequency

Description
Part Number: TDA22590 Output Voltage: 225 MV To 5.5 V
Output Current: 90 A Number Of Outputs: 1 Output
Switching Frequency: 2 MHz Operating Temperature: -40°C ~ 125°C
Highlight:

90A Output Current Power Stage IC

,

4mm x 6mm Package OptiMOS™ IC

,

2MHz Switching Frequency Integrated Circuit Chip

TDA22590 Integrated Circuit Chip 90A OptiMOS™ Integrated Smart Power Stages PG-UFLGA-34
The TDA22590 is an OptiMOS™ 90A integrated power stage offering best-in-class efficiency and thermal performance. This integrated power-stage combines a low quiescent current synchronous buck gate-driver IC with control and synchronous MOSFETs in a compact 4mm x 6mm package. The optimized gate driver and MOSFET pairing enables higher efficiency at lower output voltages required by advanced CPU, GPU, FPGA and DDR memory designs.
Product Specifications
Series OptiMOS™
Applications Converter, CPU GPU
Voltage - Input 4.25V ~ 16V
Number of Outputs 1
Voltage - Output 0.225V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 34-PowerUFLGA
Supplier Device Package PG-UFLGA-34
Key Features
  • Integrated driver & schottky diode
  • On-chip current reporting at 5 μA/A
  • Input voltage (VIN) from 4.25 V to 16 V
  • VCC and VDRV supply of 4.5 V to 5.5 V
  • Output voltage range 0.225 - 5.5 V
  • Output current capability of 90 A
  • Fault reporting & identification
  • Over temperature protection
  • Compatible with 3.3 V tri-state PWM
  • 8 mV / °C temperature analog output
  • DEEP SLEEP mode for power saving
  • Small 4 mm x 6 mm x 0.465 mm CE package
Performance Benefits
  • High current efficiency
  • Advanced protection features
  • Bootstrap UVLO and auto-refresh
  • Optimized PCB layout, heat & transfer
  • Optimized driver/MOSFET control timing
  • Minimal switch node ringing
  • Enhance fault identification & reporting
  • Industry best current sense accuracy
  • Low quiescent for power saving
