TPS62826DMQR Integrated Circuit Chip Step-Down Converter with 3A Output Current 2.4V to 5.5V Input Voltage and 1% Output Accuracy

TPS62826DMQR Integrated Circuit Chip Step-Down Converter with 3A Output Current 2.4V to 5.5V Input Voltage and 1% Output Accuracy
TPS62826DMQR Integrated Circuit Chip Step-Down Converter with 3A Output Current 2.4V to 5.5V Input Voltage and 1% Output Accuracy

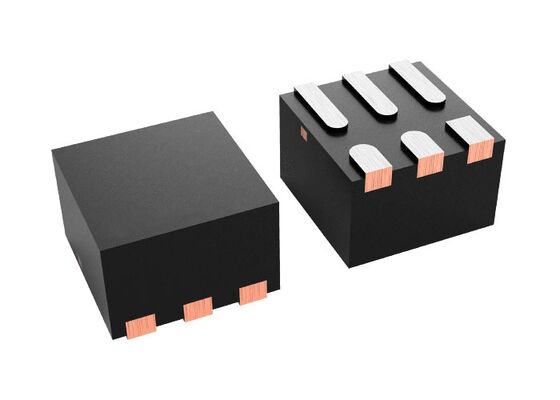

Large Image :  TPS62826DMQR Integrated Circuit Chip Step-Down Converter with 3A Output Current 2.4V to 5.5V Input Voltage and 1% Output Accuracy

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS62826DMQR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: VSON-HR-8
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

TPS62826DMQR Integrated Circuit Chip Step-Down Converter with 3A Output Current 2.4V to 5.5V Input Voltage and 1% Output Accuracy

Description
Part Number: TPS62826DMQR Output Voltage:: 600 MV To 4 V
Output Current:: 3 A Switching Frequency:: 2.2 MHz
Input Voltage:: 2.4 V To 5.5 V Load Regulation:: 0.1 %/A
Highlight:

3A Output Current Integrated Circuit Chip

,

2.4V to 5.5V Input Voltage Step-Down Converter

,

1% Output Accuracy DC/DC Converter

TPS62826DMQR Integrated Circuit Chip
2.4V to 5.5V 3A Step-Down Converter with 1% Output Accuracy
Product Overview
The TPS62826DMQR is an easy-to-use synchronous step-down DC/DC converter featuring a very low quiescent current of only 4µA. Utilizing DCS-Control topology, this device delivers fast transient response and high performance in compact designs.
Key Specifications
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Adjustable
Number of Outputs 1
Voltage - Input (Min) 2.4V
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 4V
Current - Output 3A
Frequency - Switching 2.2MHz
Synchronous Rectifier Yes
Operating Temperature -40°C ~ 125°C (TJ)
Technical Features
  • DCS-Control topology for superior performance
  • 1% feedback or output voltage accuracy across full temperature range
  • Up to 97% efficiency for optimal power management
  • 26mΩ and 25mΩ internal power MOSFETs
  • 2.4V to 5.5V input voltage range
  • 4µA operating quiescent current for low power consumption
  • 2.2MHz switching frequency
  • 0.6V to 4V adjustable output voltage
  • Power save mode for enhanced light load efficiency
  • 100% duty cycle for lowest dropout operation
  • Active output discharge capability
  • Power-good output monitoring
  • Thermal shutdown protection
  • Hiccup short-circuit protection
  • Forced-PWM version available for CCM operation
Design Advantages
The TPS62826DMQR family offers pin-to-pin and BOM-to-BOM compatibility, simplifying design implementation. Complete designs require only a small 470nH inductor, a single 4.7µF input capacitor, and two 10µF or single 22µF output capacitor.
Target Applications
  • Solid state drives
  • Portable electronics
  • Analog security and IP network cameras
  • Industrial PCs
  • Multifunction printers
  • Generic point of load systems
Alternative Component Options
Part Number Package
LT8698SEV-1 32-LQFN
LTC7805JUFDM 28-QFN
LTC7841EUHE 36-QFN
LT8608EMSE 10-MSOP
LT8608HDC 8-DFN
LT8608HMSE 10-MSOP
LT8608JDC 8-DFN
LT8608JMSE 10-MSOP
LTM4632IY 25-BGA
LTM4632IV 25-LGA
