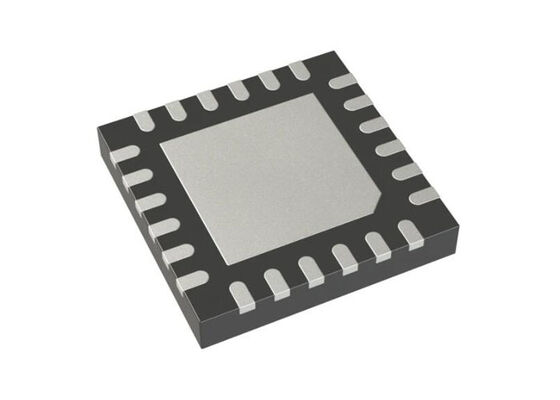

MAX7325ATG Integrated Circuit Chip with 400kHz I2C Interface and 16 I/O Ports for Automotive Applications

MAX7325ATG Integrated Circuit Chip with 400kHz I2C Interface and 16 I/O Ports for Automotive Applications
MAX7325ATG Integrated Circuit Chip with 400kHz I2C Interface and 16 I/O Ports for Automotive Applications

Large Image :  MAX7325ATG Integrated Circuit Chip with 400kHz I2C Interface and 16 I/O Ports for Automotive Applications

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MAX7325ATG
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: TQFN-24
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

MAX7325ATG Integrated Circuit Chip with 400kHz I2C Interface and 16 I/O Ports for Automotive Applications

Description
Part Number: MAX7325ATG Maximum Clock Frequency: 400 KHz
Number Of I/Os: 8 I/O Operating Supply Current: 23 UA
Interface Type: I2C, Serial Pd - Power Dissipation: 1.6667 W
Highlight:

400kHz Integrated Circuit Chip

,

I2C Interface Port Expander

,

16 I/O Ports I/O Expander

MAX7325ATG Integrated Circuit Chip
400kHz I/O Expanders TQFN24 I2C Port Expander
Product Overview
The MAX7325ATG is a 2-wire serial-interfaced peripheral featuring 16 I/O ports. The ports are divided into eight push-pull outputs and eight I/Os with selectable internal pullups and transition detection. All ports are overvoltage protected to +6V.
Technical Specifications
Parameter Value
Number of I/O 16 (8 Output Only)
Interface I2C
Interrupt Output Yes
Features POR
Output Type Open Drain, Push-Pull
Current - Output Source/Sink 20mA
Clock Frequency 400 kHz
Voltage - Supply 1.71V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 24-WFQFN Exposed Pad
Supplier Device Package 24-TQFN (4x4)
Key Features
  • 400kHz I2C Serial Interface
  • +1.71V to +5.5V Operating Voltage
  • 8 Push-Pull Output Ports
  • 8 Open-Drain I/O Ports, Rated at 20mA Sink Current
  • I/O Ports are Overvoltage Protected to +6V
  • Selectable I/O Port Power-Up Default Logic States
  • Transient Changes are Latched, Allowing Detection Between Read Operations
  • Active-Low INT Output Alerts Changes on Inputs
  • AD0 and AD2 Inputs Select from 16 Slave Addresses
  • Low 0.6µA (typ) Standby Current
  • -40°C to +125°C Temperature Range
Applications
Automotive, Cell Phones, Notebooks, SAN/NAS, Satellite Radio, Servers
