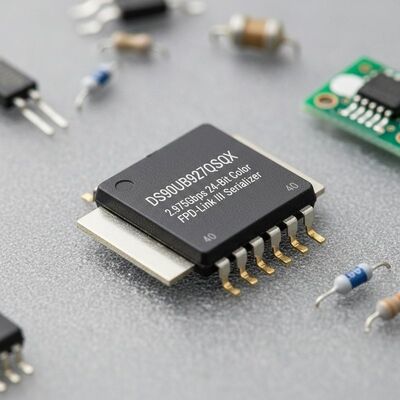

DS90UB927QSQX Integrated Circuit Chip 2.975Gbps 24-Bit Color FPD-Link III Serializer Automotive Grade WQFN-40

DS90UB927QSQX Integrated Circuit Chip 2.975Gbps 24-Bit Color FPD-Link III Serializer Automotive Grade WQFN-40
DS90UB927QSQX Integrated Circuit Chip 2.975Gbps 24-Bit Color FPD-Link III Serializer Automotive Grade WQFN-40 DS90UB927QSQX Integrated Circuit Chip 2.975Gbps 24-Bit Color FPD-Link III Serializer Automotive Grade WQFN-40

Large Image :  DS90UB927QSQX Integrated Circuit Chip 2.975Gbps 24-Bit Color FPD-Link III Serializer Automotive Grade WQFN-40

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: DS90UB927QSQX
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: WQFN-40
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

DS90UB927QSQX Integrated Circuit Chip 2.975Gbps 24-Bit Color FPD-Link III Serializer Automotive Grade WQFN-40

Description
Part Number: DS90UB927QSQX Maximum Operating Frequency: 85 MHz
Operating Supply Current: 600 UA Data Rate: 2.975Gbps
Voltage - Supply: 3V ~ 3.6V Operating Temperature: -40°C ~ 105°C (TA)
Highlight:

2.975Gbps Integrated Circuit Chip

,

24-Bit Color Serializer IC

,

Automotive Grade FPD-Link III IC

DS90UB927QSQX Integrated Circuit Chip
24-Bit Color FPD-Link III Serializer with 2.975Gbps data rate in WQFN-40 package
Product Overview
The DS90UB927QSQX is a 24-bit Color FPD-Link III Serializer with Bidirectional Control Channel, providing a complete digital interface for concurrent transmission of high-speed video, audio, and control data for automotive display and image sensing applications.
This serializer embeds the clock and level shifts signals to high-speed differential signaling. It can serialize up to 24 RGB data bits along with three video control signals and up to four I2S data inputs.
Technical Specifications
Function Serializer
Data Rate 2.975Gbps
Input Type FPD-Link, LVDS
Output Type FPD-Link III, LVDS
Number of Inputs 13
Number of Outputs 1
Voltage Supply 3V ~ 3.6V
Operating Temperature -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 40-WFQFN Exposed Pad
Supplier Device Package 40-WQFN (6x6)
Key Features
  • Bidirectional Control Channel Interface with I2C-compatible Serial Control Bus
  • Low EMI FPD-Link Video Input
  • Supports High Definition (720p) Digital Video Format
  • 5-MHz to 85-MHz PCLK Supported
  • RGB888 + VS, HS, DE and I2S Audio Supported
  • Up to 4 I2S Digital Audio Inputs for Surround Sound Applications
  • 4 Bidirectional GPIO Channels with 2 Dedicated Pins
  • Single 3.3-V Supply with 1.8-V or 3.3-V Compatible LVCMOS I/O Interface
  • AC-Coupled STP Interconnect Up to 10 Meters
  • DC-Balanced and Scrambled Data With Embedded Clock
  • Supports Repeater Application
  • Internal Pattern Generation
  • Low Power Modes Minimize Power Dissipation
  • Automotive Grade Product: AEC-Q100 Grade 2 Qualified
  • >8-kV HBM and ISO 10605 ESD Rating
  • Backward Compatible Modes
Applications
Automotive Displays for Navigation, Rear Seat Entertainment Systems, Automotive Driver Assistance, Automotive Megapixel Camera Systems
