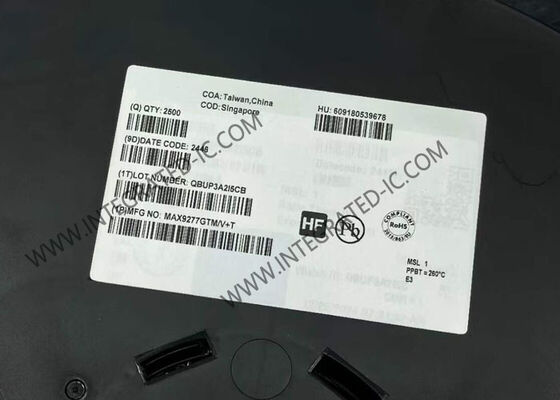

MAX9277GTM/V Integrated Circuit Chip 3.12Gbps GMSL Serializers TQFN48 Gigabit Multimedia Serial Link Serializers

MAX9277GTM/V Integrated Circuit Chip 3.12Gbps GMSL Serializers TQFN48 Gigabit Multimedia Serial Link Serializers

Product Description Of MAX9277GTM/V

MAX9277GTM/V is 3.12Gbps Gigabit Multimedia Serial Link (GMSL) serializers with 3- or 4-data lane LVDS input (oLDI) and a CML serial output programmable for 50Ω coax or 100Ω shielded twisted pair (STP) cable drive.

Specification Of MAX9277GTM/V

Features Of MAX9277GTM/V

Ideal for High-Definition Video Applications
Drives Low-Cost 50Ω Coax Cable and FAKRA Connectors or 100Ω STP
104MHz High-Bandwidth Mode Supports 1920x720p/60Hz Display With 24-Bit Color
Serializer Pre/Deemphasis Allows 15m Cable at Full Speed
Up to 192kHz Sample Rate and 32-Bit Sample Depth For 7.1 Channel HD Audio
Multiple Data Rates for System Flexibility
Up to 3.12Gbps Serial-Bit Rate
6.25MHz to 104MHz Pixel Clock
9.6kbps to 1Mbps Control Channel in UART, Mixed UART/I2C, or I2C Mode with Clock Stretch Capability
Reduces EMI and Shielding Requirements
Serial Output Programmable for 100mV to 500mV Single-Ended or 100mV to 400mV Differential
Programmable Spread Spectrum Reduces EMI
Bypassable Input PLL for Pixel Clock Jitter Attenuation
Tracks Spread Spectrum on Input
High-Immunity Mode for Maximum Control-Channel Noise Rejection
Peripheral Features for System Power-Up and Verification
Built-In PRBS Generator for BER Testing of the Serial Link
Programmable Choice of 9 Default Device Addresses
Dedicated “Up/Down” GPO for Touch-Screen Interrupt and Other Uses
Remote/Local Wake-Up from Sleep Mode
Meets Rigorous Automotive and Industrial Requirements
-40°C to +105°C Operating Temperature

Applications Of MAX9277GTM/V
High-Resolution Automotive Navigation
Megapixel Camera Systems
Rear-Seat Infotainment
