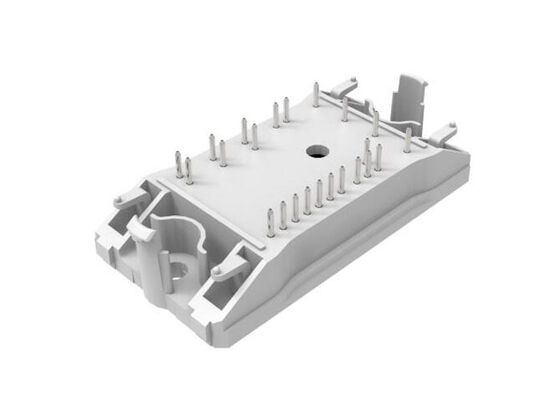

V23990-P546-C28-PM Automotive IGBT Modules 600V 30A flowPIM 0 Series PIM CIB Power Module

V23990-P546-C28-PM Automotive IGBT Modules 600V 30A flowPIM 0 Series PIM CIB Power Module​

Product Description Of V23990-P546-C28-PM

V23990-P546-C28-PM is a flowPIM 0 series PIM (CIB) power module utilising IGBT3 Trench FieldStop technology, specifically designed for 600V/30A industrial drives.

Specification Of V23990-P546-C28-PM

Product line: flowPIM® 0
Break down voltage: 600 V
Nominal chip current rating: 30 A
Chip technology: IGBT3 (Trench FieldStop)
Forward current (rectifier bridge): 34 A @ 80°C
Inrush current (non-repetitive): 200 A
Junction temperature range: -40°C to 175°C

Features Of V23990-P546-C28-PM

Topology features
- Open Emitter configuration
- Temperature sensor
- Converter+Brake+Inverter
Component features
- Easy paralleling
- Low turn-off losses
- Low collector emitter saturation voltage
- Positive temperature coefficient
- Short tail current
Housing features
- Base isolation: Al2O3
- Clip-in, reliable mechanical connection, qualified for wave soldering
- Convex shaped substrate for superior thermal contact
- Thermo-mechanical push-and-pull force relief
- Solder pin
Extra features
- with three-phase standard rectifier

Applications Of V23990-P546-C28-PM

Industrial Drives
Embedded Drives
