10-FZ12PNA015M7-P840C28 Automotive IGBT Modules 1200V 15A IGBT M7 Power Module

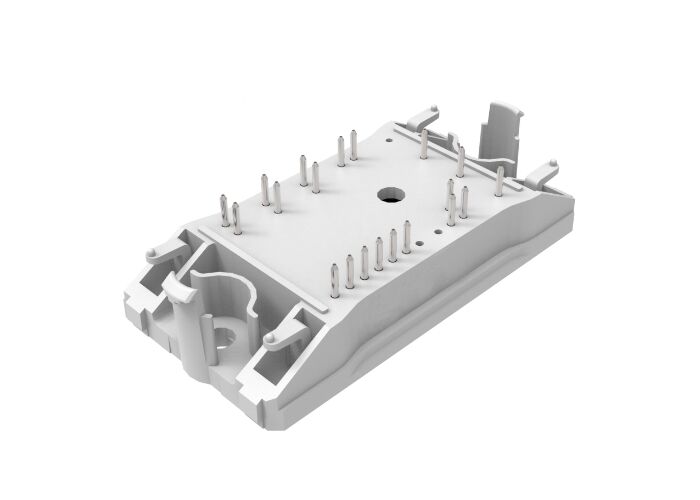

Large Image : 10-FZ12PNA015M7-P840C28 Automotive IGBT Modules 1200V 15A IGBT M7 Power Module

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	10-FZ12PNA015M7-P840C28

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	MODULE
Delivery Time:	3-5 work days
Payment Terms:	TT
Supply Ability:	10000 Pieces per Day

Contact Now

10-FZ12PNA015M7-P840C28 Automotive IGBT Modules 1200V 15A IGBT M7 Power Module

Description

Part Number:	10-FZ12PNA015M7-P840C28	Break Down Voltage::	1200 V
Nominal Chip Current Rating::	15 A	Package:	MODULE

10-FZ12PNA015M7-P840C28 Automotive IGBT Modules 1200V 15A IGBT M7 Power Module

Product Description Of 10-FZ12PNA015M7-P840C28
10-FZ12PNA015M7-P840C28 is 1200V 15A IGBT M7 Power Module for Industrial Drives applications.

Features Of 10-FZ12PNA015M7-P840C28
IGBT M7 with low VcEsat and improved EMC behavior
Open emitter configuration
Compact and low inductive design
Builtin NTC

Applications Of 10-FZ12PNA015M7-P840C28
Industrial Drives
