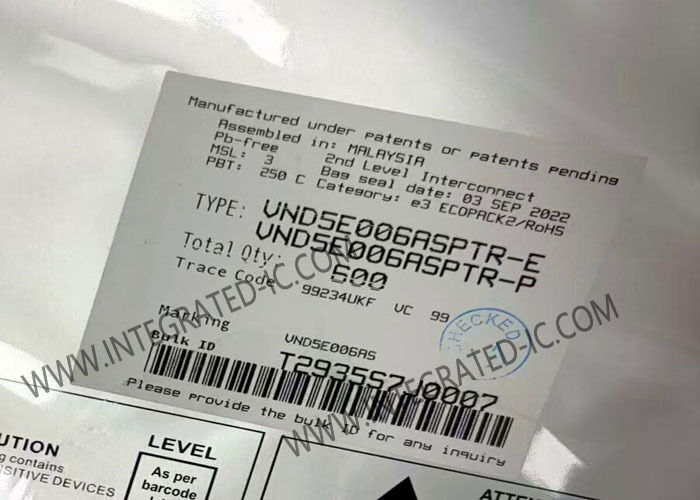

VND5E006ASPTR Integrated Circuit Chip 70A VIPower™ Double Channel High-Side Driver IC

VND5E006ASPTR Integrated Circuit Chip 70A VIPower™ Double Channel High-Side Driver IC​

Product Description Of VND5E006ASPTR

VND5E006ASPTR is a VIPower™ M0-5 double channel high-side driver and housed in PowerSO-16 package. The device is designed to drive 12 V automotive grounded loads, and to provide protection and diagnostics. They also implement a 3 V and 5 V CMOS compatible interface for the use with any microcontroller.

Specification Of VND5E006ASPTR

Features Of VND5E006ASPTR

• General
– Very low standby current
– 3.0 V CMOS compatible inputs
– Optimized electromagnetic emissions
– Very low electromagnetic susceptibility
– Compliance with European directive 2002/95/EC
– Very low current sense leakage
• Diagnostic functions
– Proportional load current sense
– High current sense precision for wide currents range
– Current sense disable
– Off-state openload detection
– Output short to VCC detection
– Overload and short to ground (power limitation) indication
– Thermal shutdown indication
• Protection
– Undervoltage shutdown
– Overvoltage clamp
– Load current limitation
– Self limiting of fast thermal transients
– Protection against loss of ground and loss of VCC
– Overtemperature shutdown with auto restart (thermal shutdown)
– Inrush current active management by power limitation
– Reverse battery protected with self switch of the PowerMOS
– Electrostatic discharge protection

Applications Of VND5E006ASPTR

All types of resistive, inductive and capacitive loads
