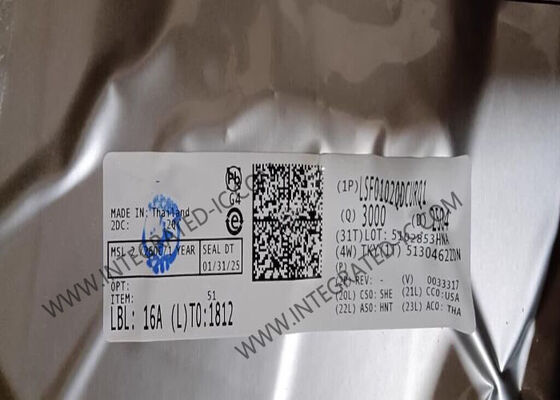

LSF0102QDCURQ1 Integrated Circuit Chip Automotive Bidirectional Multi-Voltage Level Translator

LSF0102QDCURQ1 Integrated Circuit Chip Automotive Bidirectional Multi-Voltage Level Translator

Product Description Of LSF0102QDCURQ1

LSF0102QDCURQ1 is an auto bidirectional voltage translator that translates among a wide range of supplies without the need for a directional pin.
LSF0102QDCURQ1 supports up to 100 MHz up translation and greater than 100 MHz down translation with capacitive loads ≤ 30 pF. Additionally, the LSF0102QDCURQ1 supports up to 40 MHz up and down translation at 50 pF capacitance load, which enables the LSF0102-Q1 device to support a wide variety of standard interfaces commonly found in automotive applications such as I 2C, SPI, GPIO, SDIO, UART, and MDIO.

Specification Of LSF0102QDCURQ1

Features Of LSF0102QDCURQ1

• Provides bidirectional voltage translation with no direction Pin
• Supports open drain and push-pull applications such as I2C, SPI, UART, MDIO, SDIO, and GPIO
• Supports up to 100 MHz up translation and greater than 100 MHz down translation at ≤ 30pF cap load and up to 40 MHz up or down translation at 50 pF cap load
• Enables bidirectional voltage level translation between
– 0.95 V ↔ 1.8/2.5/3.3/5 V
– 1.2 V ↔ 1.8/2.5/3.3/5 V
– 1.8 V ↔ 2.5/3.3/5 V
– 2.5 V ↔ 3.3/5 V
– 3.3 V ↔ 5 V
• Low standby current
• 5 V tolerant I/O ports to support TTL voltage levels
• Low ron provides less signal distortion
• High-impedance I/O pins when EN = low
• Flow-through pinout for ease of PCB trace routing
• Latch-up performance exceeds 100 mA per JESD 78, Class I

Applications Of LSF0102QDCURQ1
• Infotainment head unit
• Graphical cluster
• ADAS fusion
• ADAS front camera
• HEV battery management system
