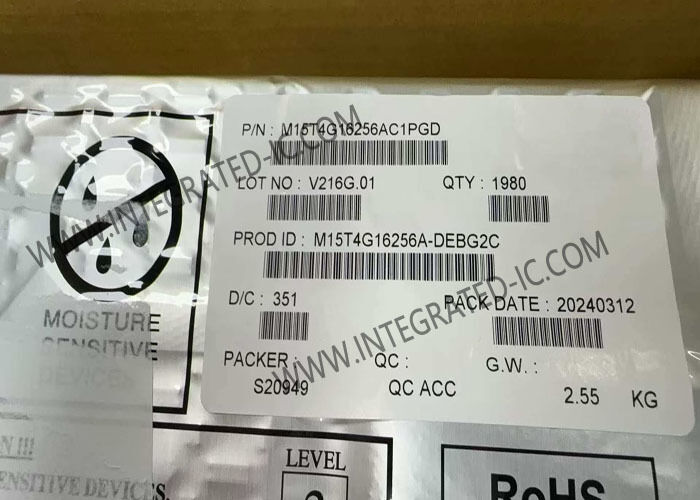

M15T4G16256A-DEBG2C Memory IC Chip High-Speed 933MHz DDR3 SDRAM Memory

M15T4G16256A-DEBG2C Memory IC Chip High-Speed 933MHz DDR3 SDRAM Memory

Product Description Of M15T4G16256A-DEBG2C
The M15T4G16256A-DEBG2C is a 4Gb double data rate 3 (DDR3) DRAM that utilises a double data rate architecture to achieve high-speed operation. It is internally configured as an eight-bank DRAM.

The 4Gb chip is organised into 32Mbit x 16 I/O x 8 memory devices. These synchronous devices achieve high-speed, dual-data-rate data rates of up to 1866 Mb/sec/pin for general applications.

The chip is designed to comply with all key characteristics of DDR3 (L) DRAM; all control and address inputs are synchronised with a pair of externally supplied differential clocks. Inputs are latched on the rising edge and acknowledged on the falling edge of the differential clock (CK). All I/Os are synchronised with the differential DQS in a source-synchronous manner.

These devices operate on a single 1.35V ± 0.067V or 1.5V ± 0.075V power supply and are available in a BGA package.

Features Of M15T4G16256A-DEBG2C
Interface and Power Supply
SSTL_135:VDDVDDQ = 1.35V(-0.067V/+0.1V)
SSTL_15: VDDVDDQ =1.5V(0.075V)
JEDEC DDR3(L) Compliant
8n Prefetch Architecture
Differential Clock(CK/ CK) and Data Strobe
(DQS/DQS)
Double-data rate on DQs, DQS and DM
Data Integrity
Auto Refresh and Self Refresh Modes
Power Saving Mode
Partial Array Self Refresh(PASR)
Power Down Mode
Signal Integrity
Configurable DS for system compatibility
Configurable On-Die Termination
ZQ Calibration for DS/ODT impedance accuracy via
external ZQ pad (240 ohm ±1%)
Signal Synchronization
Write Leveling via MR settings
Read Leveling via MPR
Programmable Functions
CAS Latency(5/6/7/8/9/10/11/12/13/14/15/16)
CAS Write Latency(5/6/7/8/9/10/11/12)
Additive Latency (0/CL-1/CL-2)
Write RecoveryTime (5/6/7/8/10/12/14/16)
Burst Type(Sequential/Interleaved)
Burst Length (BL8/BC4/BC4 or 8 on the fly)
Self Refresh Temperature Range(Normal/Extended)
Output Driver Impedance (34/40)
On-DieTermination of RTT_Nom(20/30/40/60/120)
On-DieTermination of RTT_WR(60/120)
Precharge Power Down (slow/fast)
