LAN9253T-I/R4X Ethernet IC 3-Port EtherCAT SubDevice Controller With Integrated Ethernet PHYs

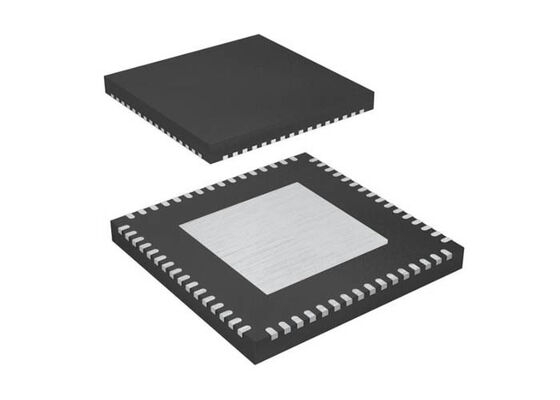

Large Image : LAN9253T-I/R4X Ethernet IC 3-Port EtherCAT SubDevice Controller With Integrated Ethernet PHYs

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	LAN9253T-I/R4X

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	QFN-64
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, Western Union

Contact Now

LAN9253T-I/R4X Ethernet IC 3-Port EtherCAT SubDevice Controller With Integrated Ethernet PHYs

Description

Part Number:	LAN9253T-I/R4X	Ethernet Bandwidth:	100BASE-TX
Distributed Clocks:	64	Ethernet Ports:	Internal-2
Package:	QFN-64	Type:	EtherCAT Device Controller

LAN9253T-I/R4X Ethernet IC 3-Port EtherCAT SubDevice Controller With Integrated Ethernet PHYs

Product Overview

The LAN9253T-I/R4X is a 3-port EtherCAT device controller (ESC) with dual integrated Ethernet PHYs, each providing a full-duplex 100BASE-TX transceiver and supporting 100Mbps (100BASE-TX) operation. The LAN9253 supports HP Auto-MDIX, allowing the use of direct connect or cross-over LAN cables. This device provides system developers a cost-effective solution for realizing EtherCAT device solutions.

The LAN9253T-I/R4X includes a 3-port EtherCAT device controller with 8K bytes of Dual Port memory (DPRAM), 8 SyncManagers, 8 Fieldbus Memory Management Units (FMMUs) and a 64-bit Distributed Clock.

Key Features

2/3-port EtherCAT SubDevice controller with 8 Fieldbus Memory Management Units (FMMUs) and 8 SyncManagers
Interfaces to most 8/16-bit embedded controllers and 32-bit embedded controllers with an 8/16-bit bus
Integrated Ethernet PHYs with HP Auto-MDIX
Wake on LAN (WoL) support
Low power mode allows systems to enter sleep mode until addressed by the MainDevice
Cable diagnostic support
1.8V to 3.3V variable voltage I/O
Integrated 1.2V regulator for single 3.3V operation

Applications

Motor Motion Control
Process/Factory Automation
Communication Modules, Interface Cards
Sensors
Hydraulic & Pneumatic Valve Systems
Operator Interfaces
