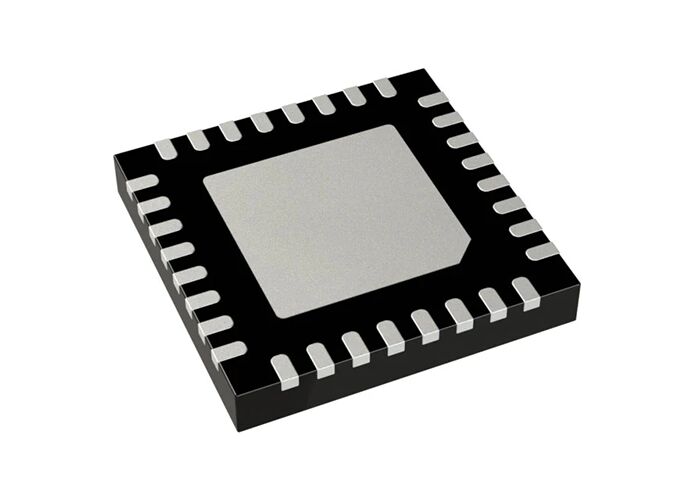

AD5749ACPZ Integrated Circuit Chip Single Channel Precision Current Output Driver

AD5749ACPZ Integrated Circuit Chip Single Channel Precision Current Output Driver
AD5749ACPZ Integrated Circuit Chip Single Channel Precision Current Output Driver

Large Image :  AD5749ACPZ Integrated Circuit Chip Single Channel Precision Current Output Driver

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: AD5749ACPZ
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LFCSP-32
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Contact Now

AD5749ACPZ Integrated Circuit Chip Single Channel Precision Current Output Driver

Description
Part Number: AD5749ACPZ Current - Supply: 5.2mA
Number Of Channels:: 1 Channel Pd - Power Dissipation:: 108 MW
Vcm - Common Mode Voltage:: 0 V To 4.096 V Unit Weight:: 1,100 G

AD5749ACPZ Integrated Circuit Chip Single Channel Precision Current Output Driver
Product Overview

The AD5749ACPZ is a single channel, low cost, precision current output driver with hardware or software programmable output ranges. The software ranges are configured via an SPI-/MICROWIRE™-compatible serial interface. The AD5749 targets applications in PLC and industrial process control. The analog input to the AD5749 is provided from a low voltage, single-supply digital-to-analog converter (DAC) and is internally conditioned to provide the desired output current/voltage range.

Specifications
Parameter Value
Current - Supply 5.2mA
Current - Output / Channel 24 mA
Voltage - Supply Span (Min) 10.8 V
Voltage - Supply Span (Max) 55 V
Operating Temperature -40°C ~ 105°C
Key Features
  • Current output ranges: 0 mA to 24 mA or 4 mA to 20 mA
  • ±0.03% FSR typical total unadjusted error (TUE)
  • ±5 ppm/°C typical output drift
  • 2% overrange
  • Flexible serial digital interface
  • On-chip output fault detection
  • PEC error checking
  • Asynchronous CLEAR function
  • Power supply range: AVDD: 12 V (±10%) to 55 V (maximum)
  • Output loop compliance to AVDD − 2.75 V
  • Temperature range: −40°C to +105°C
  • 32-lead, 5 mm × 5 mm LFCSP package
Applications
  • Process control
  • Actuator control
  • PLCs
