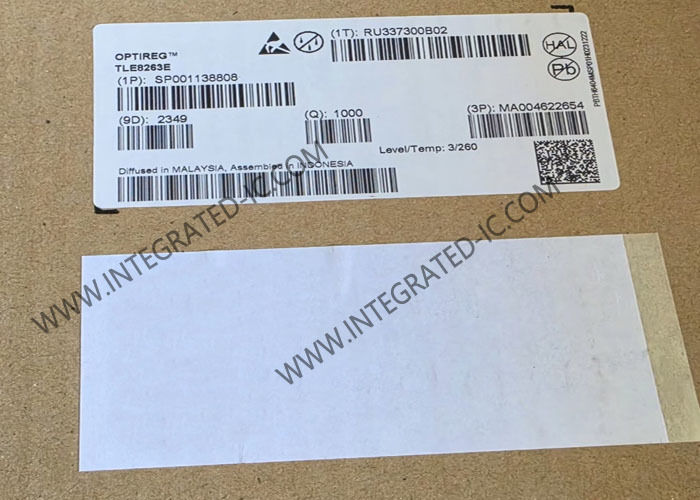

TLE8263E Integrated Circuit Chip Scalable System Basis Chip PG-DSO-36-38

TLE8263E Integrated Circuit Chip Scalable System Basis Chip PG-DSO-36-38​

Product Description Of TLE8263E

TLE8263E is monolithic integrated circuits in an enhanced power package with identical software functionality and hardware features except for the number of LIN cells. The devices are designed for CAN-LIN automotive applications e.g. body controller, gateway applications.

Specification Of TLE8263E

1. Integrated Core Functions

CAN Controller: High-speed HS-CAN, compatible with ISO 11898-2/-5 and SAE J2284, with a maximum data rate of 1 Mbps
LIN Controller: 3 independent LIN 2.1 transceivers, backwards compatible with LIN 1.3/2.0
Power Supply (LDO):
VCC1: 5V ±2%, 200mA, supplies the MCU
VCC2: 5V ±2%, 200mA, supplies the CAN or peripherals
VCC3: 5V ±4%, requires external PNP current sink, maximum 400mA
Monitoring Unit: Window/timeout watchdog, undervoltage reset, fault detection, Limp Home output
Communication Interface: 16-bit SPI (for configuration and status reading)
2. Electrical Characteristics
Supply Voltage (VS): 4.5V ~ 28V (compatible with 12V automotive batteries)
Logic Voltage: 3.3V / 5V compatible
Quiescent Current (Sleep Mode): Typically < 50μA
ESD Protection:
CAN Pins: ±8kV (HBM)
LIN Pins: ±6kV (HBM)
Other Pins: ±2kV (HBM)
Operating Junction Temperature: -40°C to +150°C

Features Of TLE8263E

• Very low quiescent current in Stop and Sleep Modes
• Reset input, output
• Power on and scalable undervoltage reset generator
• Standard 16-bit SPI interface
• Overtemperature and short circuit protection
• Short circuit proof to GND and battery
• One universal wake-up input
• Wide input voltage and temperature range
• Cyclic wake in Stop Mode

Typical Applications Of TLE8263E
Body Control Module (BCM): Centralised control of doors, windows, seats, lighting, windscreen wipers and rear-view mirrors
Vehicle Gateway: CAN ↔ LIN protocol conversion, in-vehicle network data routing
Comfort Electronics Unit: Air conditioning control, central locking, tyre pressure monitoring, instrument cluster display
Vehicle Sensor Node: Temperature / pressure / distance sensors, control of small actuators
Automotive Lighting System: LED drivers, headlamp / tail lamp control modules
Other Vehicle Electronic Control Units: Windscreen wiper control, sunroof control, parking assist modules
