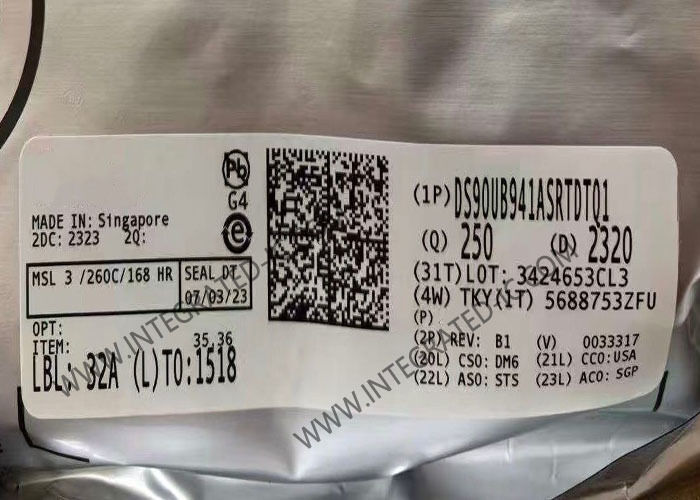

DS90UB941ASRTDTQ1 Integrated Circuit Chip 2K DSI To FPD-Link III Serializer

DS90UB941ASRTDTQ1 Integrated Circuit Chip 2K DSI To FPD-Link III Serializer

Product Description Of DS90UB941ASRTDTQ1
DS90UB941ASRTDTQ1 is a dual DSI to FPD-Link III bridge serializer designed for automotive infotainment applications.

DS90UB941ASRTDTQ1 can consolidate video data over two differential pairs to simplify system design and decrease the interconnect size and weight of the application.

Specification Of DS90UB941ASRTDTQ1

Features Of DS90UB941ASRTDTQ1
AEC-Q100 qualified for automotive applications with the following results:
Device temperature grade 2: −40℃ to +105℃ ambient operating temperature
Supports pixel clock frequency up to 210 MHz for 3K (2880x1620) at 30Hz, QXGA (2048x1536), 2K (2880x1080), WUXGA (1920x1200), or 1080p60 (1920x1080) resolutions with 24-bit color depth
MIPI D-PHY / Display Serial Interface (DSI) receiver provides a high-bandwidth interface to video processor or FPGA
Dual DSI input ports with up to 4 data lanes each
Up to 1.5 Gbps per lane
Superframe with symmetric and asymmetric unpacking capability
ECC and CRC generation
Virtual channel capability
Single and dual FPD-Link III outputs
Single link: up to 105MHz pixel clock
Dual link: up to 210MHz pixel clock
Functional Safety-Capable
Documentation available to aid ISO 26262 system design
Symmetric and asymmetric video splitting

Applications Of DS90UB941ASRTDTQ1
Automotive Infotainment:
IVI Head units and HMI modules
Central information displays
Digital instrument clusters
Rear seat entertainment systems
