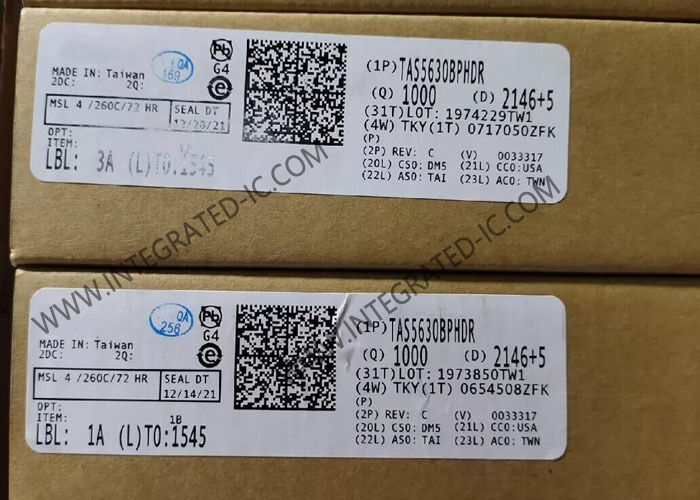

TAS5630BPHDR Integrated Circuit Chip PurePath™ HD 300W Stereo Class D Amplifier HTQFP-64

TAS5630BPHDR Integrated Circuit Chip PurePath™ HD 300W Stereo Class D Amplifier HTQFP-64​

Product Description Of TAS5630BPHDR

TAS5630BPHDR is a high-performance analog-input class-D amplifier with integrated closed-loop feedback technology (known as PurePath HD technology) with the ability to drive up to 300 W(1) Achievable output power levels are dependent on the thermal configuration of the target application.

Specification Of TAS5630BPHDR

Features Of TAS5630BPHDR

PurePath™ HD Enabled Integrated Feedback Provides:
Signal Bandwidth up to 80 kHz for High-Frequency Content From HD Sources
Ultralow 0.03% THD at 1 W into 4
Flat THD at all Frequencies for Natural Sound
80-dB PSRR (BTL, No Input Signal)
>100-dB (A-weighted) SNR
Click- and Pop-Free Start-Up
Multiple Configurations Possible on the Same PCB With Stuffing Options:
Mono Parallel Bridge-Tied Load (PBTL)
Stereo Bridge-Tied Load (BTL)
2.1 Single-Ended Stereo Pair and Bridge-Tied Load Subwoofer
Quad Single-Ended Outputs
Total Output Power at 10% THD+N
600 W in Mono PBTL Configuration
300 W per Channel in Stereo BTL Configuration
145 W per Channel in Quad Single-Ended Configuration
High-Efficiency Power Stage (>88%) With 60-m Output MOSFETs

Applications Of TAS5630BPHDR
Mini Combo System
AV Receivers
DVD Receivers
Active Speakers
