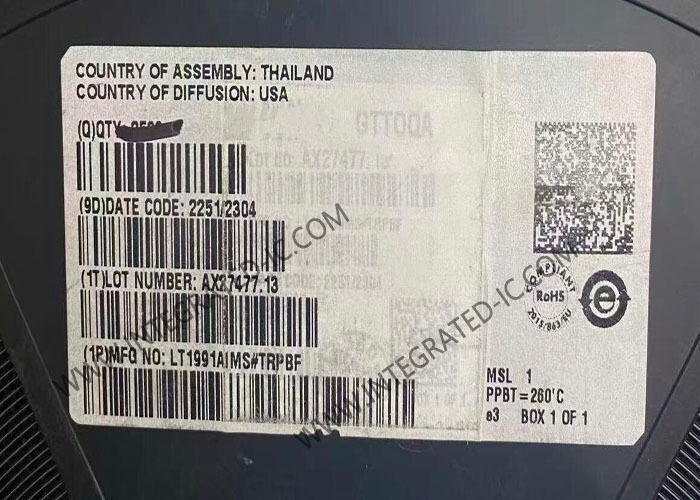

LT1991AIMS Integrated Circuit Chip 100µA Precision Gain Selectable Amplifier MSOP-10

LT1991AIMS Integrated Circuit Chip 100µA Precision Gain Selectable Amplifier MSOP-10​

Product Description Of LT1991AIMS

LT1991AIMS combines a precision operational amplifier with eight precision resistors to form a one-chip solution for accurately amplifying voltages. Gains from -13 to 14 with a gain accuracy of 0.04% can be achieved using no external components. The device is particularly well suited for use as a difference amplifier, where the excellent resistor matching results in a common mode rejection ratio of greater than 75dB.

LT1991AIMS features a 50µV maximum input offset voltage and a gain bandwidth product of 560kHz. The device operates from any supply voltage from 2.7V to 36V and draws only 100µA supply current on a 5V supply. The output swings to within 40mV of either supply rail.

Specification Of LT1991AIMS

Features Of LT1991AIMS

Pin Configurable as a Difference Amplifier, Inverting and Noninverting Amplifier
Difference Amplifier
Gain Range 1 to 13
CMRR >75dB
Noninverting Amplifier
Gain Range 0.07 to 14
Inverting Amplifier
Gain Range -0.08 to -13
Gain Error <0.04%
Gain Drift < 3ppm/°C
Wide Supply Range: Single 2.7V to Split ±18V
Micropower: 100µA Supply Current
Precision: 50µV Maximum Input Offset Voltage
560kHz Gain Bandwidth Product
Rail-to-Rail Output

Applications Of LT1991AIMS
Handheld Instrumentation
Medical Instrumentation
Strain Gauge Amplifiers
Differential to Single-Ended Conversion
