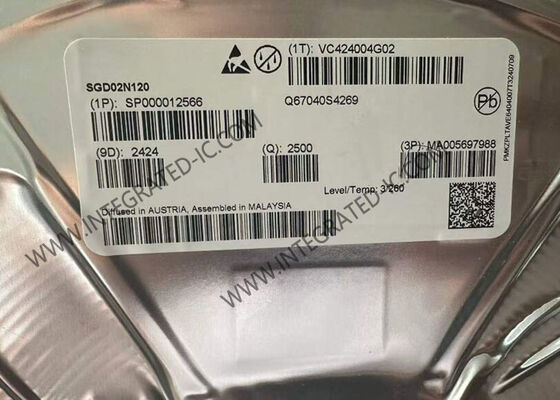

SGD02N120 1200V 2A IGBT Transistor in TO-252-3 Package - High Voltage Power Semiconductor Chip

Description

Part Number:	SGD02N120	Collector- Emitter Voltage VCEO Max::	1.2 KV
Collector-Emitter Saturation Voltage::	3.1 V	Maximum Gate Emitter Voltage::	- 20 V, 20 V
Continuous Collector Current At 25 C::	6.2 A	Pd - Power Dissipation::	62 W

SGD02N120 Integrated Circuit Chip 1200V 2A IGBT Transistors In TO-252-3 Package

Product Overview

SGD02N120 is a 1200V 2A IGBT Transistor packaged in TO-252-3 configuration, designed for high-performance power applications.

Specifications

Configuration	Single
Collector-Emitter Voltage VCEO Max	1.2 kV
Collector-Emitter Saturation Voltage	3.1 V
Maximum Gate Emitter Voltage	-20 V, 20 V
Continuous Collector Current at 25°C	6.2 A
Power Dissipation	62 W
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+150°C

Key Features

40% lower Eoff compared to previous generation
Short circuit withstand time - 10 µs
NPT-Technology offers:
- Very tight parameter distribution
- High ruggedness, temperature stable behaviour
- Parallel switching capability
Qualified according to JEDEC1 for target applications
Pb-free lead plating; RoHS compliant

Applications

Motor controls
Inverter
SMPS (Switched-Mode Power Supplies)
