LTC5582IDD Integrated Circuit Chip RMS Power Detector with 40MHz to 10GHz Frequency and 57dB Dynamic Range ±0.5dB Accuracy

LTC5582IDD Integrated Circuit Chip RMS Power Detector with 40MHz to 10GHz Frequency and 57dB Dynamic Range ±0.5dB Accuracy
LTC5582IDD Integrated Circuit Chip RMS Power Detector with 40MHz to 10GHz Frequency and 57dB Dynamic Range ±0.5dB Accuracy

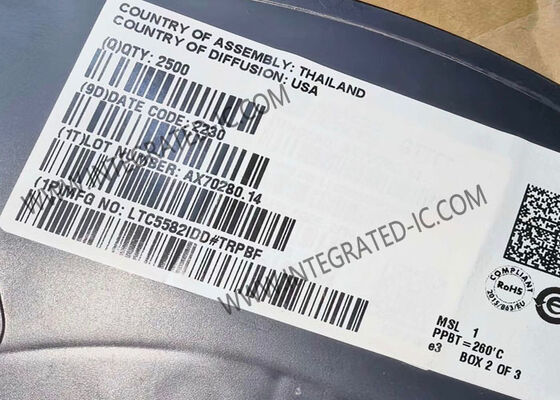

Large Image :  LTC5582IDD Integrated Circuit Chip RMS Power Detector with 40MHz to 10GHz Frequency and 57dB Dynamic Range ±0.5dB Accuracy

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LTC5582IDD
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 10-DFN
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LTC5582IDD Integrated Circuit Chip RMS Power Detector with 40MHz to 10GHz Frequency and 57dB Dynamic Range ±0.5dB Accuracy

Description
Frequency: 40MHz ~ 10GHz Part Number: LTC5582IDD
Input Range: -57dBm ~ 2dBm Accuracy: ±0.5dB
Voltage - Supply: 3.1V ~ 3.5V Current - Supply: 41.6 MA

LTC5582IDD Integrated Circuit Chip 40MHz To 10GHz RMS Power Detector With 57dB Dynamic Range

The LTC5582IDD is a 40MHz to 10GHz RMS responding power detector capable of accurate power measurement of AC signals with wide dynamic range, from -60dBm to 2dBm depending on frequency. This device precisely converts AC signal power into equivalent decibel-scaled DC voltage on a linear scale, independent of input signal waveform crest factors.

Ideal for precision RF power measurement and level control across various RF standards including LTE, WiMAX, W-CDMA, CDMA2000, TD-SCDMA, and EDGE. The DC output features a low output impedance amplifier capable of driving high capacitance loads. Packaged in a 10-lead 3mm * 3mm DFN and pin-to-pin compatible with the LT5570.

Specifications
Parameter Value
Frequency Range 40 MHz to 10 GHz
Dynamic Range 57 dB
Configuration Single
Operating Supply Voltage 3.3 V
Technology Si
Maximum Operating Temperature +105°C
Minimum Operating Temperature -40°C
Key Features
  • Frequency Range: 40MHz to 10GHz
  • Linear Dynamic Range: Up to 57dB
  • Accurate RMS Power Measurement of High Crest Factor Modulated Waveforms
  • Exceptional Accuracy Over Temperature: ±0.5dB (Typ)
  • Low Linearity Error within Dynamic Range
  • Single-Ended or Differential RF Inputs
  • Fast Response Time: 90ns Rise Time
  • Low Supply Current: 41.6mA at 3.3V (Typ)
  • Small 3mm * 3mm DFN10 Package
  • AEC-Q100 Qualified for Automotive Applications
Applications
  • RMS Power Measurement
  • PA Power Control
  • Receive and Transmit Gain Control
  • LTE, WiMAX, W-CDMA, CDMA2K, TD-SCDMA, EDGE Basestations
  • Point-to-Point Microwave Links
  • RF Instrumentation
