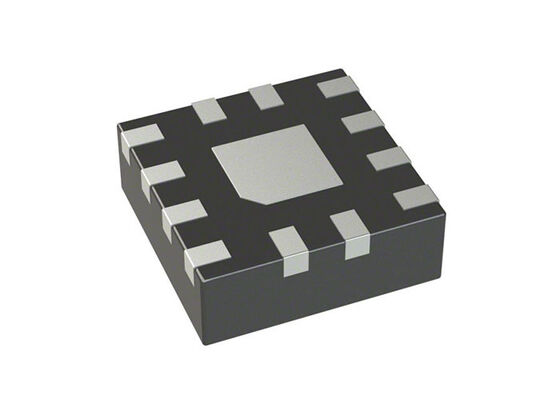

TRF0108RPVT/EM Radiation-Tolerant Near-DC to 12GHz Differential-to-Single-Ended RF Amplifier with 17.1dB Gain

TRF0108RPVT/EM is a very high performance, differential-to-single-ended (D2S) amplifier optimized for radio-frequency (RF) applications. The device is an excellent choice for applications that require a D2S conversion when driven by a digital-to-analog converter (DAC) such as the high-performance DAC39RF10-SEP or AFE7950-SEP.

The on-chip matching components simplify printed circuit board (PCB) implementation and provide the highest performance over the usable bandwidth. The device is fabricated using Texas Instruments' advanced complementary BiCMOS process and is available in a space-saving, WQFN-FCRLF 2mm x 2mm package.

• Frequency: 0Hz ~ 12GHz
• P1dB: 11.4dBm
• Gain: 17.1dB
• Noise Figure: 12.3dB
• RF Type: Radar
• Voltage Supply: 4.75V ~ 5.25V
• Current Supply: 170mA
• Test Frequency: 2GHz

• Vendor item drawing number: VID V62/26604
• Radiation tolerance with total ionizing dose (TID) up to 30krad (Si)
• Radiation hardness assurance (RHA) up to 30krad (Si) TID
• Enhanced low dose rate sensitivity (ELDRS) free process
• Single event latch-up (SEL) immune to LET of 43MeV‑cm²/mg
• Space-enhanced plastic (Space EP, SEP) construction
• Lead-free design
• Extended temperature range: -55°C to +125°C
• Differential to single-ended (D2S) RF amplifier
• Near-DC to 12GHz operation
• Gain: 15.2dB at 2GHz
• OP1dB: 11.4dBm (2GHz), 9.4dBm (6GHz)
• OIP3: 27dBm (2GHz), 28.5dBm (6GHz)
• NF: 10.9dB (2GHz), 12.1dB (6GHz)
• Power-down feature
• 5V supply with active current: 170mA

• Directly interfaces with RF DACs
• Aerospace and defense systems
• Phased array radar
• Communications payload
• Radar imaging payload
