LT4363IMS-2 Integrated Circuit Chip Surge Stopper with 4V to 80V Range and Current Limit in MSOP-12 Package

LT4363IMS-2 Integrated Circuit Chip Surge Stopper with 4V to 80V Range and Current Limit in MSOP-12 Package
LT4363IMS-2 Integrated Circuit Chip Surge Stopper with 4V to 80V Range and Current Limit in MSOP-12 Package

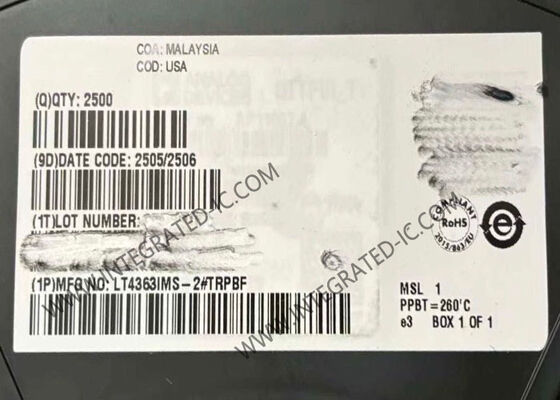

Large Image :  LT4363IMS-2 Integrated Circuit Chip Surge Stopper with 4V to 80V Range and Current Limit in MSOP-12 Package

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LT4363IMS-2
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: MSOP-12
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

LT4363IMS-2 Integrated Circuit Chip Surge Stopper with 4V to 80V Range and Current Limit in MSOP-12 Package

Description
Part Number: LT4363IMS-2 Voltage Rating:: 4 VDC To 80 VDC
Current Rating:: 1.2 MA Minimum Operating Temperature:: - 40 C
Maximum Operating Temperature:: + 85 C Package: MSOP-12

LT4363IMS-2 Integrated Circuit Chip High Voltage Surge Stopper With Current Limit
Product Overview

The LT4363IMS-2 surge stopper protects loads from high voltage transients by regulating output during overvoltage events through control of an external N-channel MOSFET gate. The output is limited to safe values, allowing loads to continue functioning. The device also monitors voltage drop between SNS and OUT pins for overcurrent fault protection, with an internal amplifier limiting voltage across the current sense resistor to 50mV. In fault conditions, a timer starts inversely proportional to MOSFET stress.

Specifications
Voltage Rating 4 VDC to 80 VDC
Current Rating 1.2 mA
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Applications Automotive, Avionics, Industrial
Dimensions 4 mm (Length) × 3 mm (Width) × 0.86 mm (Height)
Key Features
  • Withstands surges over 80V with VCC clamp
  • Wide operating voltage range: 4V to 80V
  • Adjustable output clamp voltage
  • Fast overcurrent limit: less than 5μs
  • Reverse input protection to -60V
  • Adjustable UV/OV comparator thresholds
  • Low 7μA shutdown current
  • Shutdown pin withstands -60V to 100V
  • Adjustable fault timer
  • Controls N-channel MOSFET
  • Less than 1% retry duty cycle during faults (LT4363-2)
  • Available in 12-Pin (4mm × 3mm) DFN, 12-Pin MSOP or 16-Pin SO packages
Applications
  • Avionic/Industrial surge protection
  • Hot Swap™/Live insertion
  • High side switch for battery powered systems
  • Intrinsic safety applications
