INA4180A1IPWR Integrated Circuit Chip 26V Common Mode Voltage Quad Channel 350kHz Bandwidth Current Sense Amplifier

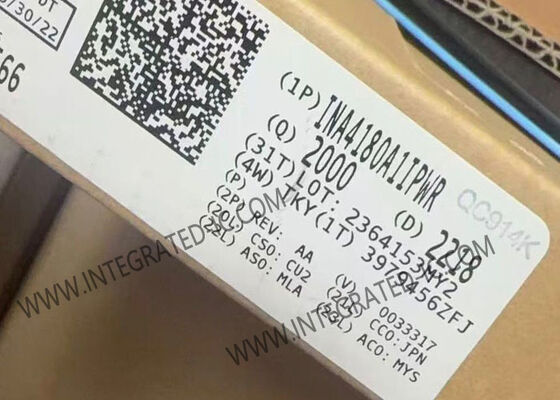

Large Image : INA4180A1IPWR Integrated Circuit Chip 26V Common Mode Voltage Quad Channel 350kHz Bandwidth Current Sense Amplifier

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	INA4180A1IPWR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	14-TSSOP
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

INA4180A1IPWR Integrated Circuit Chip 26V Common Mode Voltage Quad Channel 350kHz Bandwidth Current Sense Amplifier

Description

Part Number:	INA4180A1IPWR	Number Of Circuits:	4
Slew Rate:	2V/µs	Gain Bandwidth Product:	350 KHz
-3db Bandwidth:	350 KHz	Current - Input Bias:	80 µA

INA4180A1IPWR Integrated Circuit Chip 26V Quad Channel 350kHz Current Sense Amplifier

INA4180A1IPWR current sense amplifiers are designed for cost-optimized applications. These devices are part of a family of current-sense amplifiers (also called current-shunt monitors) that sense voltage drops across current-sense resistors at common-mode voltages from -0.2 V to +26 V, independent of the supply voltage.

Specifications

Number of Channels	4 Channel
GBP - Gain Bandwidth Product	350 kHz
Vcm - Common Mode Voltage	12 V
CMRR - Common Mode Rejection Ratio	100 dB
Ib - Input Bias Current	80 uA
Vos - Input Offset Voltage	100 uV
Supply Voltage - Max	5.5 V
Supply Voltage - Min	2.7 V
Operating Supply Current	900 uA
Gain Error	0.1 %
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	+125 °C
3 dB Bandwidth	350 kHz
en - Input Voltage Noise Density	40 nV/sqrt Hz
Gain V/V	20 V/V
Input Type	Common Mode
Ios - Input Offset Current	50 nA
Moisture Sensitive	Yes
Output Current per Channel	8 mA
SR - Slew Rate	2 V/us
Unit Weight	118.600 mg

Key Features

Common-mode range (VCM): -0.2 V to +26 V
High bandwidth: 350 kHz (A1 devices)
Offset voltage: ±150 µV (maximum) at VCM = 0 V, ±500 µV (maximum) at VCM = 12 V
Output slew rate: 2 V/µs
Accuracy: ±1% gain error (maximum), 1-µV/°C offset drift (maximum)
Gain options: 20 V/V (A1 devices), 50 V/V (A2 devices), 100 V/V (A3 devices), 200 V/V (A4 devices)
Quiescent current: 260 µA maximum (INA180)

Applications

Motor control
Battery monitoring
Power management
Lighting control
Overcurrent detection
Solar inverters
