PM8242A 12Gbps 24-Port SAS IO Controller with PCIe Gen 3 Interface for High-Performance Storage

PM8242A 12Gbps 24-Port SAS IO Controller with PCIe Gen 3 Interface for High-Performance Storage
PM8242A 12Gbps 24-Port SAS IO Controller with PCIe Gen 3 Interface for High-Performance Storage

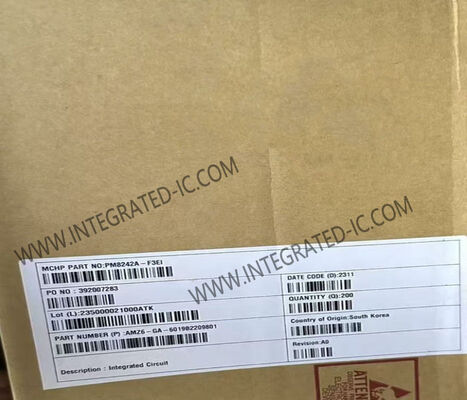

Large Image :  PM8242A 12Gbps 24-Port SAS IO Controller with PCIe Gen 3 Interface for High-Performance Storage

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: PM8242A
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: BGA
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

PM8242A 12Gbps 24-Port SAS IO Controller with PCIe Gen 3 Interface for High-Performance Storage

Description
Part Number: PM8242A Port Count Supported Devices: 24 Port
Generation: 12 Gbps Interface: 8-Lane PCIe Gen 3
Physical Dimensions (Inch/mm): 27 Mm X 27 Mm Type: SmartIOC 2100 24x12G SAS IO Controller

PM8242A Integrated Circuit Chip 12Gbps SmartIOC 2100 24-Port SAS IO Controller For Storage

The PM8242A SmartIOC SAS I/O Controller delivers reliable ultra-high performance HBA functionality with industry-leading low-power operation. These SmartIOCs provide unparalleled flexibility along with a broad range of standard features designed to meet the most demanding server storage applications.

PM8242A offers optional entry-level hardware RAID 0/1/10/5 modes without any external DRAM. These devices also provide additional dedicated RAID-capable boot ports and support Microsemi Smart Storage solution drivers for all major operating systems with comprehensive management tools, including GUI and CLI interfaces.

Product Specifications
Product Type IOC Controller
Port Count Supported Devices 24
Generation 12 Gbps
Interface 8-Lane PCIe Gen 3
RAID Level 0, 1, 10, 5
Physical Dimensions 27 mm x 27 mm
Key Highlights
  • Industry-leading throughput
  • Compatible with Microsemi Smart Storage solution drivers for all major operating systems and their unified management utilities
  • Two additional 6G SAS/SATA boot ports with RAID 1 support
  • RAID 0, 1, 10, 5 with hardware acceleration and no additional host software requirements
  • No DDR memory required, regardless of mode
Product Features
HBA Features
  • Persistent logging and binding
  • Up to 1.6M IOPS performance (4K random reads)
  • Up to 6.9 GB/s bandwidth
  • Transport Layer Retry (TLR) support
  • Multi-initiator (host)/clustering for SAS
  • TRIM and UNMAP support for SSDs
  • SAS dual path failover (RAID stack managed Active/Standby)
Entry-Level RAID Features
  • Flexible configuration for RAID mode
  • Dynamic sector repair
  • Multiple LUN support
  • Support for up to 238 raw devices
  • Support for up to 32 target devices in RAID mode
  • Supports up to eight SAS/SATA Logical/RAID volumes
  • Split mirror and combine
  • Copyback hot spare
  • Displays raw devices on connector
High-Speed I/O Features
  • SAS or SATA operation on a per-PHY basis
  • Independent per-channel selectable high-speed outputs support multiple programmable levels of pre-emphasis and output swing
  • Multiple programmable levels of receive equalization
  • Integrated resistive termination
  • Automatic negotiation of link speed
  • Decision Feedback Equalizer provides robust recovery of 12 Gbps SAS signals over lossy channels
