TPS7A4001DGNR 100V Input 50mA Output Low-Dropout Voltage Regulator with HVSSOP-8 Package

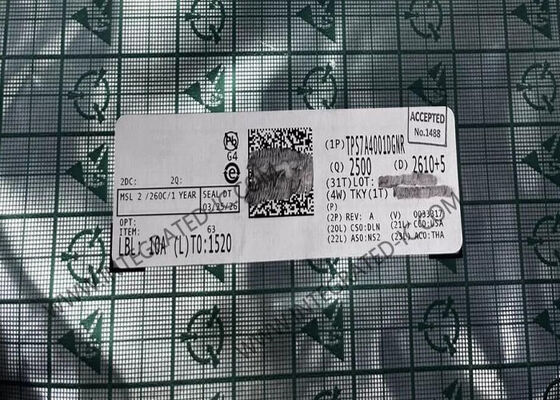

Large Image : TPS7A4001DGNR 100V Input 50mA Output Low-Dropout Voltage Regulator with HVSSOP-8 Package

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	TPS7A4001DGNR

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	HVSSOP-8
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

TPS7A4001DGNR 100V Input 50mA Output Low-Dropout Voltage Regulator with HVSSOP-8 Package

Description

Part Number:	TPS7A4001DGNR	Voltage - Input (Max):	100V
Voltage Dropout (Max):	1.3V @ 50mA	Current - Output:	50mA
PSRR:	65dB (100Hz)	Operating Temperature:	-40°C ~ 125°C

TPS7A4001DGNR Integrated Circuit Chip 100V 50mA Low-Dropout Voltage Regulator HVSSOP-8 Linear Regulator

Product Overview

The TPS7A4001DGNR is a very high voltage-tolerant linear regulator featuring a thermally-enhanced HVSSOP package, capable of withstanding continuous DC or transient input voltages up to 100V.

Technical Specifications

Product Category	LDO Voltage Regulators
Mounting Style	SMD/SMT
Package / Case	MSOP-8
Output Current	50 mA
Number of Outputs	1 Output
Polarity	Positive
Quiescent Current	25 uA
Output Type	Adjustable
Minimum Operating Temperature	-40 ℃
Maximum Operating Temperature	+125 ℃
Dropout Voltage	290 mV
Line Regulation	0.03 %/ Vout
Load Regulation	0.31 %/V
Operating Supply Current	20 uA
Output Voltage Range	1.175 V to 90 V
Power Dissipation	833 mW

Key Features

Very High Maximum Input Voltage: 100 V
Wide Input Voltage Range: 7 to 100 V
Accuracy: Nominal 1%, Over Line, Load, and Temperature: 2.5%
Low Quiescent Current: 25 µA
Quiescent Current at Shutdown: 4.1 µA
Maximum Output Current: 50 mA
CMOS Logic-Level-Compatible Enable Pin
Adjustable Output Voltage from about 1.175 to 90 V
Stable With Ceramic Capacitors: Input ≥ 1 µF, Output ≥ 4.7 µF
Dropout Voltage: 290 mV
Built-In Current Limit and Thermal Shutdown Protection
Package: High Thermal Performance HVSSOP PowerPAD™
Operating Temperature Range: -40°C to 125°C

Applications

Microprocessors and Microcontrollers Powered by Industrial Busses With High Voltage Transients
Industrial Automation
Telecom Infrastructure
Automotive
Power over Ethernet (PoE)
LED Lighting
Bias Power Supplies
