BTS5016-1EKB Automotive Grade Smart High-Side Switch with 8A Output Current and 16mOhm Rds On

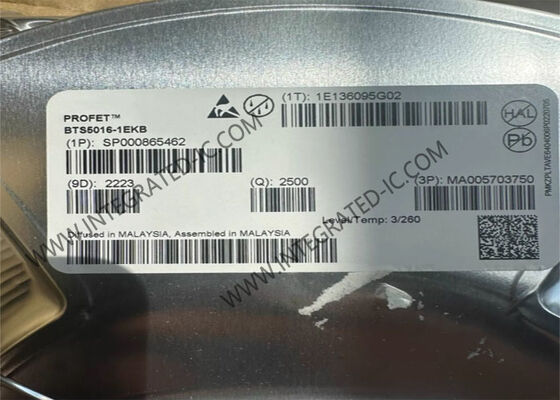

Large Image : BTS5016-1EKB Automotive Grade Smart High-Side Switch with 8A Output Current and 16mOhm Rds On

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	BTS5016-1EKB

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	PG-DSO-14
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

BTS5016-1EKB Automotive Grade Smart High-Side Switch with 8A Output Current and 16mOhm Rds On

Description

Part Number:	BTS5016-1EKB	Output Configuration:	High Side
Voltage - Load:	5V ~ 28V	Current - Output (Max):	8A
Rds On (Typ):	16mOhm	Operating Temperature:	-40°C ~ 150°C (TJ)

BTS5016-1EKB Integrated Circuit Chip Single Channel Automotive Smart High-Side Switch PG-DSO-14

BTS5016-1EKB Integrated Circuit Chip Single Channel Automotive Smart High-Side Switch PG-DSO-14

BTS5016-1EKB is a 16 mΩ single channel Smart High-Side Switch, embedded in PG-DSO-14-47 EP, Exposed Pad package, with protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. BTS5016-1EKB is integrated in Smart6 technology. It is specially designed to drive lamps up to H1/H4/H7/H9, as well as LEDs in the harsh automotive environment.

Specifications

Type	High Side
Number of Outputs	1 Output
Output Current	8 A
Current Limit	50 A
On Resistance - Max	32 mOhms
On Time - Max	250 us
Off Time - Max	250 us
Operating Supply Voltage	5 V to 28 V
Minimum Operating Temperature	-40 ℃
Maximum Operating Temperature	+150 ℃
Mounting Style	SMD/SMT
Package / Case	DSO-14-47 EP
Series	PROFET 12V
Pd - Power Dissipation	2 W

Features

One channel device
Very low stand-by current
3.3 V and 5 V compatible logic inputs
Electrostatic discharge protection (ESD)
Optimized electromagnetic compatibility
Logic ground independent from load ground
Low power DMOS leakage I in OFF state
Green product (RoHS compliant)
AEC qualified

Applications

Automotive body control module (BCM)
EV traction inverter
Suitable for resistive, inductive and capacitive loads
Replaces electromechanical relays, fuses and discrete circuits
Most suitable for loads with high inrush current, such as lamps
