NTS0104GU12 4-Bit Dual-Supply Translating Transceiver 50Mbps Bidirectional Voltage Level Translator IC Chip

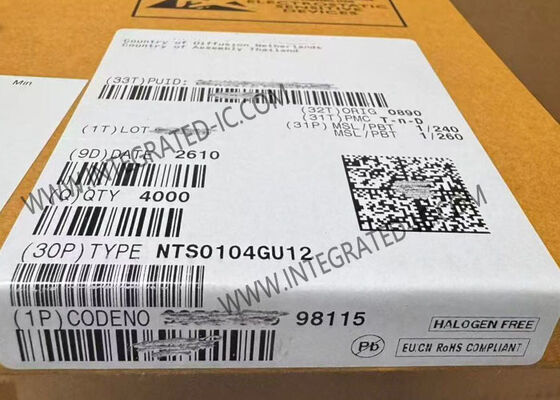

Large Image : NTS0104GU12 4-Bit Dual-Supply Translating Transceiver 50Mbps Bidirectional Voltage Level Translator IC Chip

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	NTS0104GU12

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	XQFN-12
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

NTS0104GU12 4-Bit Dual-Supply Translating Transceiver 50Mbps Bidirectional Voltage Level Translator IC Chip

Description

Part Number:	NTS0104GU12	Translator Type:	Voltage Level
Channel Type:	Bidirectional	Data Rate:	50Mbps
Channels Per Circuit:	4	Operating Temperature:	-40°C ~ 125°C (TA)

NTS0104GU12 Integrated Circuit Chip 4-Bit Dual-Supply Translating Transceiver 50Mbps Voltage Level Translator

Product Overview

The NTS0104GU12 is a 4-bit, dual supply translating transceiver with auto direction sensing that enables bidirectional voltage level translation. It features two 4-bit input-output ports (An and Bn), one output enables input (OE), and two supply pins (VCC(A) and VCC(B)).

VCC(A) can be supplied at any voltage between 1.65 V and 3.6 V, and VCC(B) can be supplied at any voltage between 2.3 V and 5.5 V, making the device suitable for translating between various voltage nodes (1.8 V, 2.5 V, 3.3 V, and 5.0 V).

Specifications

Product Category	Translation - Voltage Levels
Type	Dual Supply Translating Transceiver
Data Rate	50 Mbps
Package / Case	XQFN-12
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.65 V
Propagation Delay Time	5.8 ns
Minimum Operating Temperature	-40 ℃
Maximum Operating Temperature	+125 ℃
Mounting Style	SMD/SMT
Operating Supply Current	45 uA
Output Type	Tri-State
Power Dissipation	250 mW

Key Features

Wide supply voltage range: VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
Maximum data rates: Push-pull: 50 Mbit/s
IOFF circuitry provides partial power-down mode operation
Inputs accept voltages up to 5.5 V
Comprehensive ESD protection exceeding industry standards
Latch-up performance exceeds 100 mA per JESD 78B Class II
Specified from -40 °C to +85 °C and -40 °C to +125 °C

Related Components in Stock

Part Number	Package
BGA525N6E6327XTSA1	6-XFDFN
BGA729N6E6327XTSA1	6-XFDFN
BGA7P220E6327XTSA1	TSNP-16
BGA7P320E6327XTSA1	TSNP-16
BGA725L6E6327FTSA1	6-XFDFN
BGMC1210E6327XUMA1	VQFN-32
BGAP2D30AE6327XTSA1	TSNP-16
BGAP2S20AE6327XTSA1	TSNP-16
BGAP2S30AE6327XTSA1	TSNP-16
BGAP2D20AE6327XTSA1	TSNP-16
