MC33153PG IGBT Gate Driver Integrated Circuit Chip for High Power Applications with 1A Source/2A Sink Current and -40°C to 150°C Operating Temperature

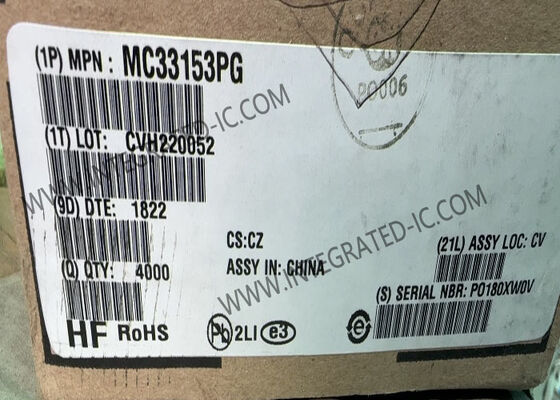

Large Image : MC33153PG IGBT Gate Driver Integrated Circuit Chip for High Power Applications with 1A Source/2A Sink Current and -40°C to 150°C Operating Temperature

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	MC33153PG

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	8-DIP
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

MC33153PG IGBT Gate Driver Integrated Circuit Chip for High Power Applications with 1A Source/2A Sink Current and -40°C to 150°C Operating Temperature

Description

Part Number:	MC33153PG	Voltage - Supply:	11V ~ 20V
Logic Voltage - VIL, VIH:	1.2V, 3.2V	Current - Peak Output (Source, Sink):	1A, 2A
Rise / Fall Time (Typ):	17ns, 17ns	Operating Temperature:	-40°C ~ 150°C (TJ)

MC33153PG Integrated Circuit Chip Single IGBT Gate Driver For High Power Applications

The MC33153PG is specifically designed as an IGBT driver for high power applications including AC induction motor control, brushless DC motor control, and uninterruptible power supplies. While optimized for driving discrete and module IGBTs, this device offers a cost-effective solution for driving power MOSFETs and bipolar transistors. Device protection features include the choice of desaturation or overcurrent sensing and undervoltage detection. Available in dual-in-line and surface mount packages.

Specifications

Type	Half Bridge
Output Current	20 mA
Operating Supply Current	7.9 mA
Operating Temperature Range	-40°C to +105°C
Mounting Style	Through Hole
Package/Case	PDIP-8
Supply Voltage - Max	15 V
Unit Weight	1 g

Key Features

High Current Output Stage: 1.0 A Source/2.0 A Sink
Protection Circuits for Both Conventional and Sense IGBTs
Programmable Fault Blanking Time
Protection against Overcurrent and Short Circuit
Undervoltage Lockout Optimized for IGBT's
Negative Gate Drive Capability
Cost Effectively Drives Power MOSFETs and Bipolar Transistors
Pb-Free and Halide-Free Device
