STP240N10F7 Power MOSFET Transistor with 100V Drain-Source Voltage 300W Power Dissipation and Ultra Low On-Resistance

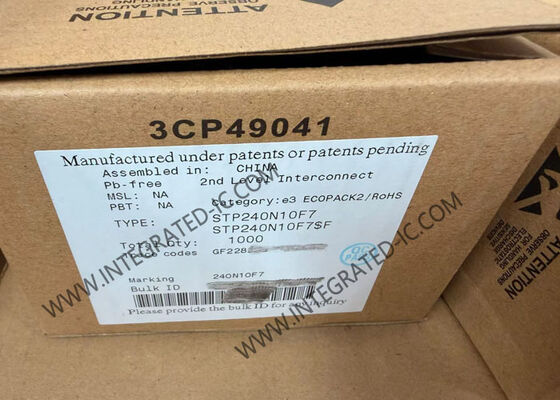

Large Image : STP240N10F7 Power MOSFET Transistor with 100V Drain-Source Voltage 300W Power Dissipation and Ultra Low On-Resistance

Product Details:

Place of Origin:	CN
Brand Name:	Original Factory
Certification:	Lead free / RoHS Compliant
Model Number:	STP240N10F7

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Contact for Sample
Packaging Details:	TO-220-3
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C,Western Union

Contact Now

STP240N10F7 Power MOSFET Transistor with 100V Drain-Source Voltage 300W Power Dissipation and Ultra Low On-Resistance

Description

Part Number:	STP240N10F7	FET Type:	N-Channel
Drain To Source Voltage (Vdss):	100 V	Gate Charge (Qg) (Max) @ Vgs:	176 NC @ 10 V
Power Dissipation (Max):	300W (Tc)	Operating Temperature:	-55°C ~ 175°C (TJ)

STP240N10F7 Integrated Circuit Chip 100V STripFET F7 Power MOSFET Transistors TO-220-3

Product Overview

STP240N10F7 N-channel Power MOSFET utilizes the STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.

Specifications

Parameter	Value
Product Category	MOSFETs
Technology	Si
Mounting Style	Through Hole
Package / Case	TO-220-3
Transistor Polarity	N-Channel
Number of Channels	1 Channel
Vds - Drain-Source Breakdown Voltage	100 V
Id - Continuous Drain Current	110 A
Rds On - Drain-Source Resistance	3.2 mOhms
Vgs - Gate-Source Voltage	-20 V, 20 V
Vgs th - Gate-Source Threshold Voltage	4.5 V
Qg - Gate Charge	160 nC
Minimum Operating Temperature	-55 ℃
Maximum Operating Temperature	+175 ℃
Pd - Power Dissipation	300 W
Channel Mode	Enhancement
Tradename	STripFET
Fall Time	112 ns
Product Type	MOSFETs
Rise Time	139 ns
Subcategory	Transistors
Transistor Type	1 N-Channel
Typical Turn-Off Delay Time	110 ns
Typical Turn-On Delay Time	49 ns

Key Features

Ultra low on-resistance
100% avalanche tested

Applications

High current switching applications
