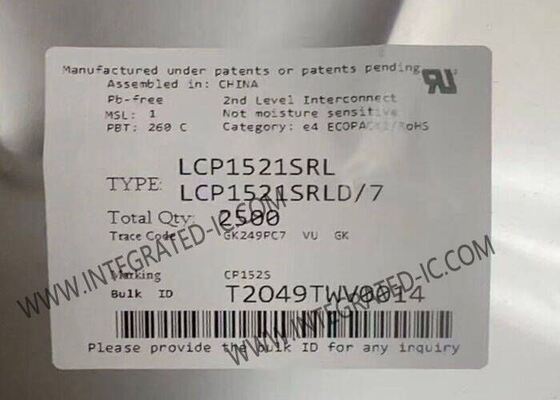

LCP1521SRL Programmable Transient Voltage Suppressor IC Chip with 150 mA Holding Current and 35pF Capacitance for SLIC Protection

LCP1521SRL Programmable Transient Voltage Suppressor IC Chip with 150 mA Holding Current and 35pF Capacitance for SLIC Protection
LCP1521SRL Programmable Transient Voltage Suppressor IC Chip with 150 mA Holding Current and 35pF Capacitance for SLIC Protection

Large Image :  LCP1521SRL Programmable Transient Voltage Suppressor IC Chip with 150 mA Holding Current and 35pF Capacitance for SLIC Protection

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: LCP1521SRL
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: SOIC-8
Delivery Time: 5-8 work days
Payment Terms: T/T,L/C,Western Union
Contact Now

LCP1521SRL Programmable Transient Voltage Suppressor IC Chip with 150 mA Holding Current and 35pF Capacitance for SLIC Protection

Description
Part Number: LCP1521SRL Current - Peak Pulse (8/20µs): 100 A
Current - Peak Pulse (10/1000µs): 30 A Current - Hold (Ih): 150 MA
Capacitance: 35pF Number Of Elements: 1

LCP1521SRL Integrated Circuit Chip Programmable Transient Voltage Suppressor For SLIC Protection
Product Description

The LCP1521SRL integrated circuit chip has been specifically designed to protect new high voltage and classical SLICs against transient overvoltages. Positive overvoltages are clamped by 2 diodes, while negative surges are suppressed by 2 thyristors with their breakdown voltage referenced to -VBAT through the gate. These components feature very low gate triggering current (IGT) to reduce current consumption on printed circuit boards during the firing phase.

Specifications
Specification Value
Number of Channels 2 Channel
Package / Case SOIC-8
Ipp - Peak Pulse Current 150 A
Cd - Diode Capacitance 35 pF
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Vf - Forward Voltage 3 V
Unit Weight 0.068784 oz
Key Features
  • Programmable transient suppressor
  • Wide negative firing voltage range: VGn = -175 V max.
  • Low dynamic switching voltages: VFP and VDGL
  • Low gate triggering current: IGT = 5 mA max.
  • Peak pulse current: IPP = 40 A (5/310 μs)
  • Holding current: IH = 150 mA min.
