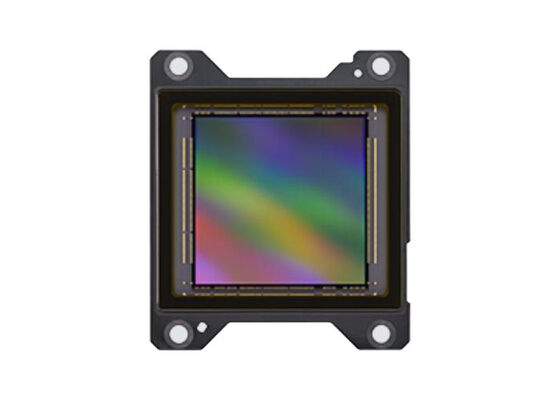

IMX927-AQB CMOS Image Sensor with 105.51 Million Pixels and Global Shutter Function for 39.7 mm Diagonal Color Cameras

The IMX927-AQB is a diagonal 39.7 mm (Type 2.5) CMOS active pixel type solid-state image sensor with a square pixel array and 105 M effective pixels. This chip features a global shutter with variable charge-integration time and operates with 3.3 V, 2.9 V, 1.1 V, and 1.8 V quadruple power supply, delivering high sensitivity and low dark current characteristics.

• CMOS active pixel type dots
• Built-in timing adjustment circuit, HV driver and serial communication circuit
• Global shutter function
• Input clock frequency 37.125MHz/74.25MHz
• Number of recommended recording pixels: 10240(H) x 10240(V) approx. 104.85M pixels
• Readout modes: All-pixel scan mode, 1/2 subsampling mode / Color selection with subsampling mode, ROI mode, Vertical / Horizontal - Normal / Inverted readout mode
• Maximum frame rate in All-pixel scan mode: 8-bit 112.1 frame/s, 10-bit 102.3 frame/s, 12-bit 73.1 frame/s
• Variable-shutter speed
• Pulse Output Function with monitor output for Integration period (TOUT0) and for internal AD period (TOUT1)
• 8-bit / 10-bit / 12-bit Output
• CDS/PGC function with variable gain control

• FA Cameras
• 3D Vision Cameras
