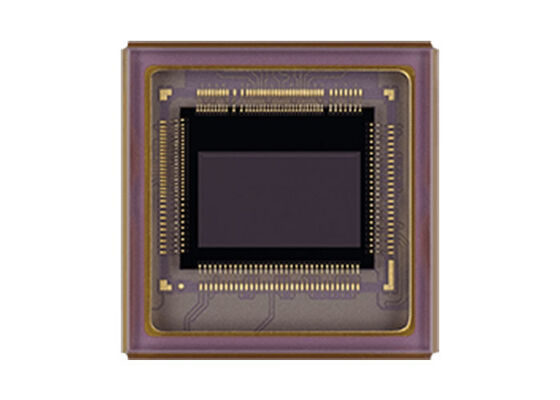

IMX647-AAMR-C Sensor IC 1/4.5 Inch High Speed Event-Based Vision Sensor With Approx. 0.32 M Effective Pixels
IMX647-AAMR-C is a diagonal 3.9 mm (Type 1/4.5) approx. 0.32 M effective pixels (640 (H) x 512 (V)) event based vision sensor. This sensor detects brightness changes that exceed the set thresholds independently for each pixel, and asynchronously outputs the coordinates (X, Y) of detected pixels, the detected times (timestamp), and the brightness change polarity information in the order detected. This enables high-speed, low-latency (800 μs or less at 1000 lux) output. Output of only brightness changes enables to swiftly capture moving subjects, and areas without brightness changes are not output, realizing a sensor that enables efficient data extraction. The sensor also features pixel characteristics where the output voltage is output logarithmically relative to the input light intensity, which enables event output with a high dynamic range. This chip operates with analog 3.0 V, digital 1.1 V, and 1.8 V triple power supply.
Specifications
Key Features
- Number of effective pixels: 640 (H) x 521 (V) approx. 0.32 M pixels
- Built-in logarithmic I/V converter circuit, Illuminance-change detection unit
- Pixel ROI
- External trigger
- Pixel reset
- MIPI (1 Lane / 2 Lane switching) output
- SLVS (2 ch / 4 ch switching) output
- EVT 2.1 (64-bit based event output format), EVT 3.0 (16-bit encoding event output format) Event compression
- Contrast threshold adjustment, Latency adjustment, Dead time adjustment, Analog noise filter
- Thermometer, Illuminometer (absolute Illuminometer, relative Illuminometer)
- Readout wait function
- Number of events monitor
- Region of events monitor
- Event signal processing functions: Anti-flicker, Event filter, Event rate
Applications
- Entertainment/Gaming
- IoT
- Smart Home
