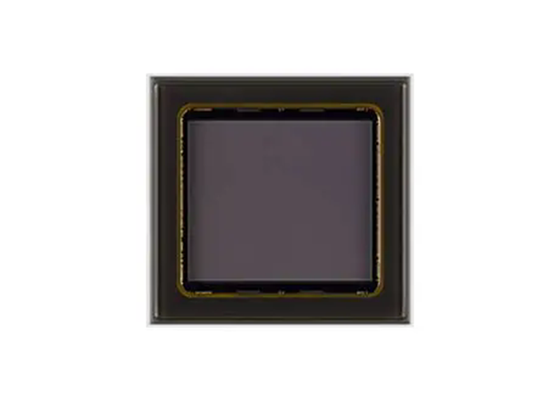

IMX811-AAMR CMOS Image Sensor IC with Square Pixel Array 247.04 M Effective Pixels and 16-bit A/D Converter for Monochrome Cameras

IMX811-AAMR is a diagonal 64.84 mm (Type 4.1) CMOS active pixel type image sensor with a square pixel array and 247.04 M effective pixels. This sensor incorporates maximum 24 dB PGA circuit and 16-bit A/D converter. 16-bit digital output makes it possible to readout the signals of 247.04 M effective pixels at high-speed of 5.3 frame/s in All-pixel readout mode.

• Type 4.1 CMOS active pixel type dots
• Input clock frequency 72 MHz
• All-pixel readout mode
• Various readout modes
• Rolling shutter function
• H driver, V driver and serial communication circuit on chip
• +24 dB gain settable in CDS/PGA on chip
• Built-in 12-bit/14-bit/16-bit A/D converter
• Back-illuminated type
• Sensor Slave Mode only
• Seal glass: both sides are processed by AR coating
• SLVS-EC output

• FA cameras
