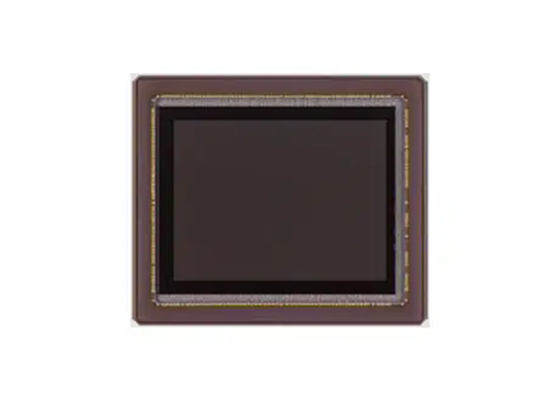

IMX455ALK-K CMOS Image Sensor IC with Diagonal 43.3mm Square Pixel Array and 61.17 M Effective Pixels

IMX455ALK-K CMOS Image Sensor IC with Diagonal 43.3mm Square Pixel Array and 61.17 M Effective Pixels
IMX455ALK-K CMOS Image Sensor IC with Diagonal 43.3mm Square Pixel Array and 61.17 M Effective Pixels

Large Image :  IMX455ALK-K CMOS Image Sensor IC with Diagonal 43.3mm Square Pixel Array and 61.17 M Effective Pixels

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: IMX455ALK-K
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: LGA-294
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 10000 Pieces per Day
Contact Now

IMX455ALK-K CMOS Image Sensor IC with Diagonal 43.3mm Square Pixel Array and 61.17 M Effective Pixels

Description
Part Number: IMX455ALK-K Package: LGA-294
Unit Cell Size: 3.76 μm (H) × 3.76 μm (V) Image Size: Diagonal 43.3 Mm (Type 2.7)

IMX455ALK-K Sensor IC Diagonal 43.3mm CMOS Image Sensor With Square Pixel For Monochrome Cameras

IMX455ALK-K is a diagonal 43.3 mm (Type 2.7) CMOS active pixel type image sensor with a square pixel array and 61.17 M effective pixels. This sensor incorporates maximum 36 dB PGA circuit and 16-bit A/D converter. 16-bit digital output makes it possible to readout the signals of 61.17 M effective pixels at high-speed of 3.9 frame/s in still picture mode. In addition, this sensor can output 8K moving picture at 30 frame/s or 4K moving picture at 60 frame/s.

Specifications
Image size Diagonal 43.3 mm (Type 2.7)
Total number of pixels 9602 (H) × 6498 (V) approx. 62.39 M pixels
Number of effective pixels 9576 (H) × 6388 (V) approx. 61.17 M pixels
Number of active pixels 9568 (H) × 6380 (V) approx. 61.04 M pixels
Chip size 40.961 mm (H) × 31.108 mm (V)
Unit cell size 3.76 μm (H) × 3.76 μm (V)
Optical black Horizontal (H) direction: Front 16 pixels, Rear 0 pixel; Vertical (V) direction: Front 22 pixels, Rear 0 pixel
Package 294 pin LGA
Features
  • 35 mm full size CMOS active pixel type dots
  • Input clock frequency 72 MHz
  • All-pixel readout mode (+ digital overlap drive)
  • Various readout modes
  • Rolling shutter function moving picture mode
  • H driver, V driver and serial communication circuit on chip
  • +36 dB gain in CDS/PGA on chip (when A/D 16-bit, 14-bit, 12-bit)
  • Built-in 11-bit/12-bit/14-bit/16-bit A/D converter
  • 8 Lane SLVS-EC output
  • Back-illuminated type
Application
  • Industrial camera
